Abus Pfaffenhain Standard Double Cylinder Euro Profile Lock 40/55 Class 6.2 C Pearl Nickel

Product Overview

The Abus Pfaffenhain Standard 40/55 double cylinder euro profile lock features high-security mechanical key technology in a pearl nickel finish. Certified to PN-EN 1303:2015-07, class 6.2 C, this cylinder is designed for demanding commercial and institutional settings, including doors requiring fire and smoke protection certification. Supplied with 5 dimple keys, each cylinder includes a secure emergency clutch function that enables operation from the outside even when a key is inserted on the inside.

What sets this SKU apart is its class 6 key security with 6 tumblers and hardened steel pins in the first and third position, providing enhanced protection against picking and drilling attacks. This distinction is critical for purchasers needing compliance with high security risk standards and extended key control. It is especially recommended for facility managers, public sector buyers, and large scale projects where certified, tamper-resistant, and corrosion-resistant lock solutions are mandatory.

Key Features

• Emergency clutch function ? enables unlocking even when a key is inserted from the other side for safety compliance


• Class 6 key security ? 6 tumblers and up to 100,000 possible key combinations


• Anti-drill protection ? first and third pins of hardened steel with additional housing reinforcement for core defense


• Fire/smoke door certification ? approved for use in fire-rated and smoke-proof assemblies under PN-EN 1303:2015-07


• Corrosion resistance class C ? suitable for harsh or variable climate conditions


• Dimple key system ? includes 5 ergonomically designed dimple keys with code card for secure duplication control


• 14 mm core ? allows complex master key and keyed-alike system design

Technical Specifications

• Cylinder Length: 40/55 mm


• Core Diameter: 14 mm


• Key Type: Dimple, paracentric profile


• Certification: PN-EN 1303:2015-07 1 6 0 B 0 C 6 B


• Security Class: 6.2 C


• Anti-Drill Pins: Hardened steel (first and third pin)


• Fire Resistance: Approved for fire and smoke doors


• Material Finish: Pearl nickel


• Included Keys: 5


• Card Code System: Yes

Applications

Designed for use in commercial, institutional, and multi-occupancy residential buildings requiring high security and fire safety compliance. Suitable for fire-rated and smoke-control doors, master key systems, keyed-alike systems, and environments demanding high resistance to manipulation, drilling, or corrosion, such as offices, schools, healthcare facilities, and government buildings.

Packaging & Shipping

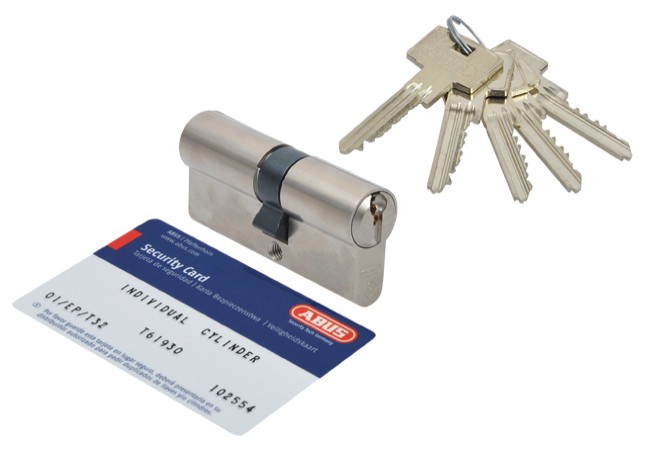

Each cylinder is shipped in a sealed box including the euro profile cylinder, 5 cut dimple keys, card code, fixing screw, and user manual. Tamper-evident packaging ensures integrity for professional installations and certified projects.
