Abus Pfaffenhain Standard Euro Cylinder 40/45mm Class 6 Emergency Function Nickel

Product Overview

The Abus Pfaffenhain Standard 40/45 Euro profile cylinder is designed for use in fire-rated and smoke-control doors in commercial and residential buildings, where certified burglary and key security performance is required. It is PN-EN 1303:2015-07 certified at the highest Class 6 key security and Class B attack resistance, providing a solution for projects demanding robust security with documented compliance.

Its emergency function (secure clutch) allows operation from one side even if a key is inserted from the other, minimizing the risk of lockout scenarios and increasing safety in multi-user or managed access environments. This feature makes it a dependable choice for hotels, apartment complexes, or managed office spaces where safety, continuity of access, and certified fire safety standards must be met.

Key Features

• Secure clutch/emergency function ? ensures operation even if the key is inserted on both sides, reducing lockout risk


• Key security Class 6 ? features 6 pin tumblers and up to 100,000 key combinations for high security requirements


• Attack resistance Class B ? withstands drilling for 5-10 minutes, incorporates hardened steel pins for core and body protection


• Highest corrosion and temperature resistance Class C ? suitable for demanding environments and external doors


• Compatible with master key systems ? 14 mm core enables complex access hierarchies in commercial installations


• Certified for fire/smoke doors ? approved use in fire-rated and smoke-control assemblies, expanding specification options


• Set includes 5 nickel-silver serrated keys ? ensures durability and wear resistance for frequent use

Technical Specifications

• Cylinder Type: Euro profile double cylinder


• Length: 40/45 mm


• Key Security Class: 6 (PN-EN 1303)


• Attack Resistance: Class B (PN-EN 1303)


• Corrosion/Temperature Resistance: Class C (PN-EN 1303)


• Master Key Capability: Supported (14 mm core)


• Emergency Function: Yes (secure clutch)


• Body Material: Nickel-plated


• Included Keys: 5 (nickel silver, paracentric profile)


• Certification: PN-EN 1303:2015-07


• Fire Door Approval: Yes (fire/smoke control)


• Pin Material: Hardened steel (pins 1 and 3)

Applications

Used in commercial and high-traffic residential buildings such as hotels, offices, and multi-dwelling units where EN 1303 certified security, key control, and attack resistance are specified. Approved for installation in fire-rated and smoke-control doors. Particularly indicated for master key systems and managed access control solutions.

Packaging & Shipping

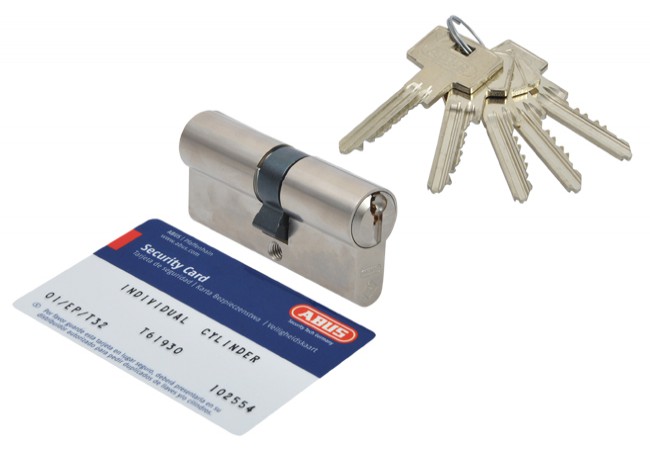

Each cylinder is individually packed in a sealed carton with 5 serrated nickel-silver keys, mounting screw, code card, and user manual. Tamper-evident packaging ensures integrity for B2B buyers and compliance with procurement standards.
