ABUS X12 30/40 Anti-Burglary Cylinder Nickel Safe Clutch Emergency Function SKG

Product Overview

The ABUS X12 30/40 Anti-Burglary Cylinder is a nickel-plated security lock core designed for commercial and public building access control. Certified to SKG, DIN 18252, DIN EN 1303, and ITB 6.D fire resistance standards, it features a patented horizontal key system with 12 hardened steel pins for drill protection and manipulation resistance. Five paracentric drilled keys and a security card are included, and the product is covered by a two-year manufacturer's warranty.

Its integrated emergency function (safe clutch) distinguishes this SKU, allowing external operation even if a key is left in the inner side?critical for facilities where emergency access may be required. This feature eliminates operational risk in hotels, offices, schools, and other public spaces, making the ABUS X12 particularly suited for bulk procurement and installation in fire-rated and security-critical doors.

Key Features

• Patented horizontal key system ? protected until 2030 for enhanced legal security and key control


• SKG, DIN 18252, DIN EN 1303, ITB 6.D certified ? meets high European and fire-resistance standards for public and commercial use

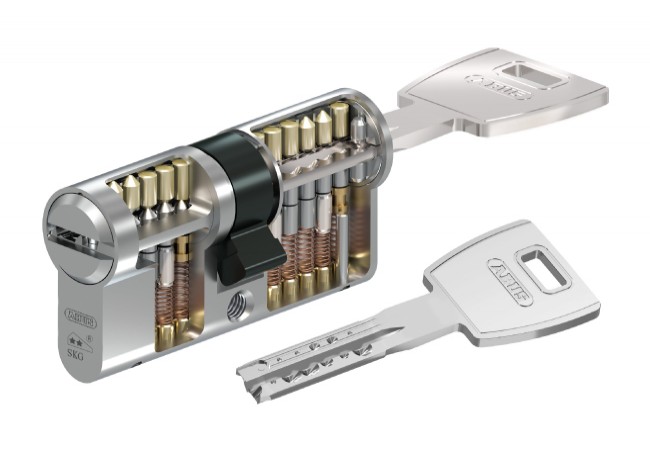

• 12 hardened steel pins ? advanced drill and break-in resistance


• Emergency function (safe clutch) ? enables door operation from outside even with an inside key present


• Security card and extra pin ? prevents unauthorized duplication and replacement

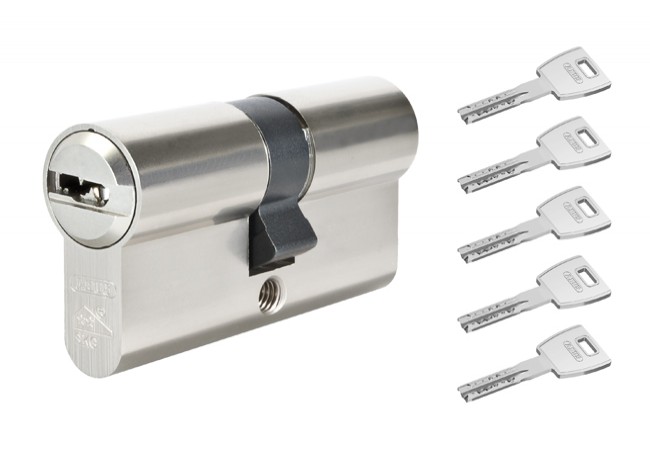

• Paracentric drilled keys ? 5 included for enhanced picking resistance and convenient staff distribution


• Extended key neck ? supports installation alongside security escutcheons and thicker doors

Technical Specifications

• Cylinder Length: 30/40 mm


• Material: Nickel-plated


• Pin Count: 12 hardened steel


• Key Type: Paracentric, drilled


• Keys Included: 5


• Emergency Function: Yes (safe clutch)


• Certification: SKG


• Certification: DIN 18252


• Certification: DIN EN 1303


• Certification: ITB 6.D


• Certification: ISO 9001


• Fire Resistance: Certified for public use


• Warranty: 2 years

Applications

Designed for access control in hotels, offices, schools, hospitals, and other public and commercial buildings. Suitable for installation in fire-rated doors, security escutcheons, and environments requiring protection against manipulation such as drilling, picking, and bumping. Supports legal security key systems and bulk deployment in specification-driven projects.

Packaging & Shipping

Individually sealed and tamper-evident box includes the cylinder, five drilled keys, security card, and mounting accessories. Bulk orders available with OEM labeling and protective packing for shipping.
