ABUS X12 35/35 Euro Profile Cylinder SKG Certified 12 Pins Nickel Emergency Function

Product Overview

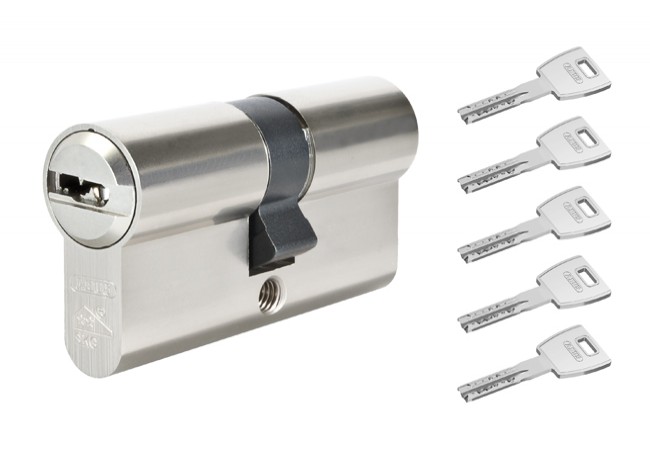

The ABUS X12 35/35 anti-burglary cylinder is a double euro-profile lock designed for high-security doors in public and commercial environments. Engineered in Germany and rated to SKG certification, ITB class 6.D, DIN 18252, DIN EN 1303, and ISO 9001, it offers robust resistance against manipulation techniques such as drilling, picking, and bumping. Each cylinder includes five drilled paracentric keys, and features an emergency function allowing operation from one side even if another key is left inserted inside.

Distinctive for its patented system with 12 hardened steel pins and security card, the ABUS X12 significantly reduces the risk of unauthorized key duplication and forced entry. This provides procurement assurance for facility managers or security contractors requiring certified cylinders for fire-rated doors and anti-burglary projects. Particularly suited for bulk installation in office buildings, hotels, and other facilities with strict access control requirements.

Key Features

• Patented cylinder system ? Protected against unauthorized key duplication until 2030


• SKG certified ? Fully resistant to drilling, picking, and bumping


• Emergency function ? Safe clutch allows entry even if one key is inside

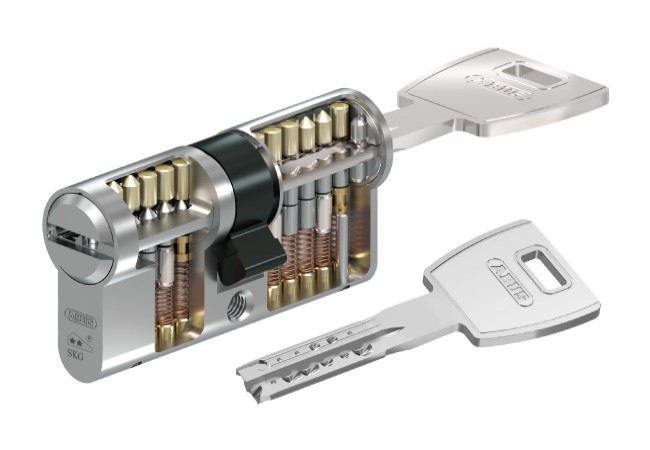

• 12 hardened steel pins ? Enhanced anti-drill and anti-burglary protection


• Security card ? Prevents illegal key copying and cylinder replacement


• Fire resistance ? Approved for use on fire-rated doors as per ITB class 6.D


• Extended key neck ? Allows installation with anti-burglary escutcheons

Technical Specifications

• Cylinder Length: 35/35 mm (70 mm total)


• Number of Pins: 12 (hardened steel)


• Key Type: Drilled paracentric profile


• Key Quantity: 5


• Certification: SKG


• Certification: ITB class 6.D


• Certification: DIN 18252


• Certification: DIN EN 1303


• Certification: ISO 9001


• Finish: Nickel


• Function: Emergency/safe clutch (bezp.sprzęgło)


• Patent Validity: Until 2030

Applications

Used in commercial and public buildings such as offices, hotels, schools, and hospitals requiring high-security euro-profile cylinders. Compatible with fire-rated doors, anti-burglary escutcheons, and access-controlled facilities. Well-suited for bulk procurement by facility managers, security integrators, and OEM lock system providers seeking certified anti-manipulation and fire-resistant solutions.

Packaging & Shipping

Each cylinder is packed in a factory-sealed box including 5 drilled keys, a security card, and mounting instructions. Tamper-evident packaging ensures product integrity for certification and warranty. Bulk shipment options available for professional procurement.
