ABUS X12 50/60 Cylinder Lock Nickel Emergency Function SKG EN 1303 12-Pin

Product Overview

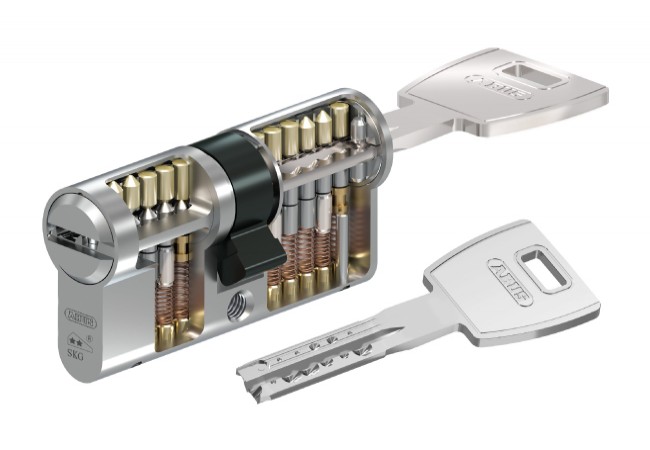

The ABUS X12 50/60 anti-burglary cylinder lock is a high-security bitted cylinder, engineered with German precision and certified to SKG, DIN 18252, DIN EN 1303, and ITB 6.D standards. Frequently installed in commercial buildings, institutional spaces, and high-traffic public environments, this cylinder is suited for fire-resistant doors and applications where advanced manipulation resistance is required.

The distinguishing feature of this model is its patented emergency function (secure clutch), permitting the door to be locked or unlocked from the outside even if a key is left inserted on the inner side. This addresses a major facility management risk by eliminating lockout scenarios and supports uninterrupted access control. Procurements for multi-tenant facilities, public buildings, and critical infrastructure will benefit most from this solution, especially where certification against manipulation (anti-drill, anti-picking, anti-bumping) is mandatory.

Key Features

• Emergency function (secure clutch) ? lock operates from both sides even if a key is left inside


• Certified SKG, DIN 18252, DIN EN 1303 ? independently tested for security and durability


• 12 hardened steel pins ? advanced drill, bump, and picking resistance for high-threat environments


• Fire resistance confirmed ? applicable for use in public and institutional buildings with fire door requirements


• Patent protection until 2030 ? prevents unauthorized key duplication and increases procurement control


• System key platform ? optional master-key and keyed-alike systems for facility-wide deployment


• Paracentric, dimple keys (5 included) ? increased manipulation resistance and user convenience

Technical Specifications

• Cylinder Length: 50/60 mm


• Patent Protection: Until 2030


• Number of Pins: 12 (hardened steel)


• Number of Keys Included: 5 (paracentric, dimple-type)


• Certification: SKG


• Certification: DIN 18252


• Certification: DIN EN 1303


• Certification: ITB class 6.D


• Certification: ISO 9001


• Emergency Function: Yes (secure clutch / double clutch)


• Fire Resistance: Confirmed


• Finish: Nickel

Applications

Designed for integration in fire-rated doors and high-security entrances of commercial buildings, public facilities, and multi-unit residential complexes. Suitable for use scenarios demanding certified resistance to manipulation attacks including anti-drill, anti-bumping, and anti-picking functions. Recommended for facility managers procuring for key control, or where patent-protected key duplication is a requirement. Compatible with master-key and keyed-alike systems on request.

Packaging & Shipping

Each cylinder is delivered in a security-sealed box, including 5 dimple keys, security card, and installation instructions. Packaging ensures tamper evidence and full product integrity for compliance with B2B and institutional procurement standards.
