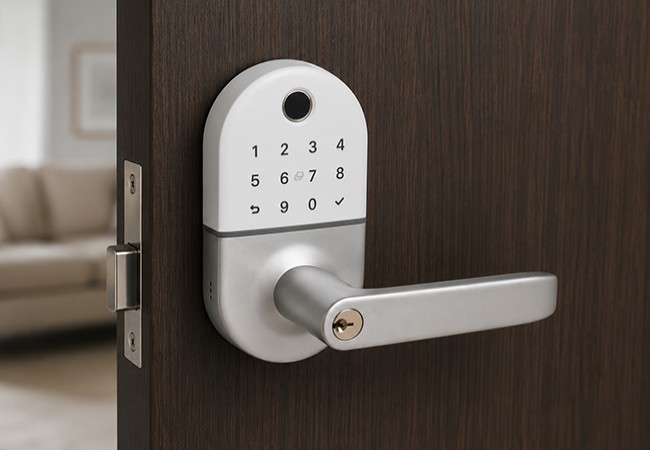

BH-H13 Electronic Door Handle 13.56 MHz Remote Management TTLock App Biometric White/Silver

Product Overview

The BH-H13 electronic door handle provides multi-modal access control for internal doors in office, commercial, and residential buildings. Engineered for wood and aluminium doors 35-65 mm thick, it offers authentication via fingerprint, card, PIN code, and smartphone application, and complies with Mifare and BLE identification standards at 13.56 MHz frequency. Powered by 4 AA batteries with emergency key and USB-C power options, the BH-H13 operates within a temperature range of -10°C to 55°C and supports up to 200 users for both biometric and card credentials.

The most distinguishing feature of the BH-H13 is its advanced remote management via the TTLock app, which enables administrators to add, delete, or assign time-limited PINs and manage multiple locks from a single account. This eliminates the risk of unauthorized entry due to lost cards or shared codes, and streamlines access management across large facilities, co-working spaces, or rental properties. The product is a strong fit for building managers, property administrators, and hospitality sector B2B buyers seeking to centralize access control with robust credential variety and real-time management capabilities.

Key Features

• Multi-modal access ? supports fingerprint (200 users), Mifare card/keyfob (200 users), PIN (150 users), app, and emergency key


• Remote management ? TTLock app allows for adding, deleting, and time-limiting user codes and access via Bluetooth or WiFi gateway


• Power redundancy ? battery-powered (4xAA), with low voltage alert, USB-C backup power, and emergency key override


• Flexible installation ? fits 35-65 mm thick left or right-handed doors (aluminium or wood), adjustable via handle repositioning


• User/event capacity ? stores up to 200 fingerprints and 200 cards/fobs; 150 unique PIN users; multi-lock account management


• Environmental resistance ? operates from -10°C to 55°C, 0%-95% humidity; dust and moisture-protected


• Visual and audio alerts ? feedback for operation, access events, and low battery warnings

Technical Specifications

• Identification Methods: Fingerprint, Card/Tag, PIN, Bluetooth, App, Emergency Key


• User Capacity: 200 fingerprints, 200 cards/fobs, 150 PINs


• Frequency: 13.56 MHz (Mifare/BLE)


• Door Thickness Compatibility: 35-65 mm


• Material: Aluminium alloy


• Color: White/Silver


• Power Supply: 4x 1.5V AA alkaline batteries


• Low Voltage Warning: <4.8 V


• Backup Power: Micro USB-C


• Working Temperature: -10°C to 55°C


• Humidity Range: 0%-95%


• Net Weight: 2 kg


• Spindle: 8x8 mm


• App: TTLock (Polish language version included)


• Mounting: For left and right doors, internal use only

Applications

Optimized for access control in medium-traffic offices, co-working spaces, company headquarters, small hotels, serviced apartments, and shared residential buildings. Suitable for interior wooden and aluminium doors requiring up to 200 authorized users. Enables time-limited codes for employee shifts, cleaning staff, or short-term rentals, and central management for multi-unit property administrators.

Packaging & Shipping

Each unit is supplied in secure export packaging and includes the electronic handle, mounting hardware, two emergency keys, three Mifare-compatible key fobs, and a multilingual instruction manual. Suitable for bulk procurement and OEM projects.
