CES PSM 30/35 Cylinder Lock Insert EN 1303 Class 6.D Nickel Patent Key Profile

Product Overview

The CES PSM 30/35 nickel cylinder lock insert offers advanced security for residential and commercial facility doors, meeting the stringent requirements of DIN 18252 and EN 1303. Engineered in Germany, this pin tumbler cylinder features anti-break-in protection (class 6.D per EN 1303:2015) and is supplied with three profile-protected, mechanically coded brass-nickel keys. The design is intended for environments where only authorized access is critical, including apartment buildings, offices, and secure zones within industrial sites.

The most distinctive feature is its unique, patent-protected key profile and an accompanying security card?enabling controlled issuance of duplicates and eliminating the risk of unauthorized key copying. This is particularly valuable for property managers and facility administrators who require strict key management across large installations or master key systems for compliance and risk reduction. Highly suited for bulk procurement in new construction, building renovation, or managed access projects.

Key Features

• Class 6.D burglary protection ? meets highest grade per EN 1303:2015 standard for lock cylinders


• Spring-loaded 6-pin mechanism ? increased tamper resistance and precision operation


• Hardened steel pins and front metal plates ? enhanced resistance to drilling and forced entry


• Patent-protected key profile ? prevents unauthorized duplication, supports master key systems


• Security card included ? enables controlled production of duplicate keys for authorized personnel only


• Compatible with electronic access systems ? modular design allows integration with CES electronic controls


• High-nickel CDA brass keys (3.5 mm thick) ? durable, premium construction for long service life

Technical Specifications

• Lock Type: Pin tumbler cylinder (PSM)


• Size: 30/35 mm


• Material (Cylinder): Nickel-plated


• Material (Keys): Brass, high-nickel (CDA)


• Number of Keys: 3


• Certification: DIN 18252


• Certification: EN 1303


• Security Class: 6.D (EN 1303:2015)


• Anti-drill Protection: Yes


• Anti-pick Protection: Yes


• Key Profile: Patent protected, profile-controlled


• Compatibility: Available for modular and electronic systems

Applications

Designed for use in entrance and internal doors in residential and commercial buildings, including apartment complexes, office facilities, and secured industrial areas. Suitable for installations requiring high burglary resistance, master key setups, or integration with electronic access control systems. Meets regulatory demands for high-security lock cylinders in compliance-driven sectors and large-scale real estate projects.

Packaging & Shipping

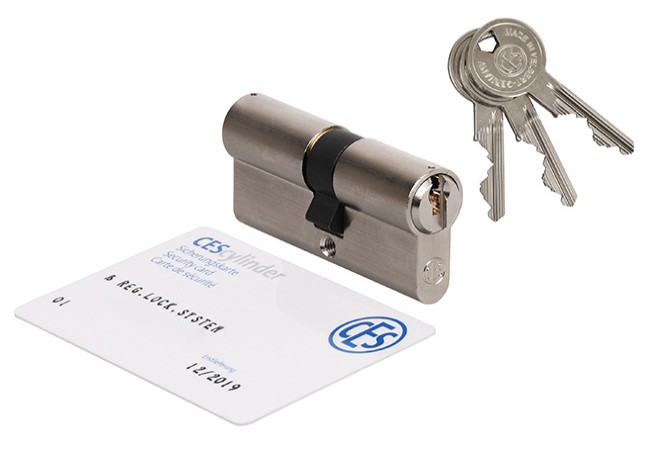

Each cylinder is packed in a factory-sealed box with tamper-evident strip. The kit includes the lock cylinder, three profile-protected keys, a security card for authorized key duplication, and mounting hardware. Special packaging ensures full functionality and unbroken warranty coverage upon delivery.
