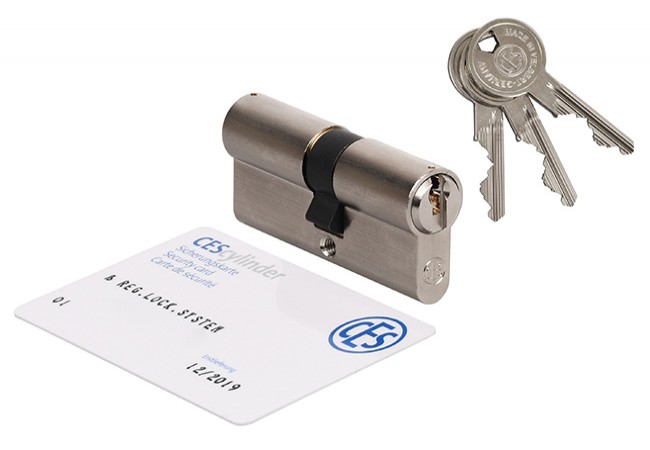

CES PSM 30/40 Euro Profile Cylinder Lock EN 1303 6.D Nickel Patented Key System

Product Overview

The CES PSM 30/40 nickel-plated cylinder insert is a high-security lock core designed for residential and commercial buildings where controlled access and certified break-in resistance are essential. The product conforms to DIN 18252 and EN 1303 standards with a security class of 6.D (EN 1303:2015), ensuring compliance with demanding European requirements and providing legal assurance in procurement documents. Each cylinder comes with three patented keys and a coded security card for authorized key duplication, reducing organizational risk in managed access environments.

Its main differentiator is the patented key profile with anti-copying protection and a robust 3.5 mm high-nickel brass key, which drastically limits unauthorized duplication risk and aligns with strict building security policies. This feature is particularly valuable for facility managers and property developers responsible for large-scale installations where key control and resistance to manipulation are prerequisites. It is especially well-suited for tenders in multi-family dwellings, office buildings, and access-controlled commercial facilities.

Key Features

• Six spring-loaded tumblers ? hardened steel pins in body and plug increase resistance to picking and drilling


• Certified break-in resistance 6.D ? tested to EN 1303:2015 for commercial-grade security


• Patented key profile ? unauthorized copying prevented by legal and physical protection; blank distribution restricted


• Security card system ? key duplication only possible with included authorization card


• Front anti-drill plates ? extra metal inserts shield cylinder from drilling and manipulation


• Nickel-plated housing ? increased durability and corrosion resistance in frequent-use doors


• Modular system option ? integratable with CES electronic access control platforms

Technical Specifications

• Cylinder Length: 30/40 mm (measured from cam center)


• Lock Type: Euro profile cylinder (bębenkowa)


• Keys Supplied: 3 patented cut keys


• Key Material: High-nickel brass (CDA), 3.5 mm thick


• Security Grade: 6.D (EN 1303:2015)


• Standards: DIN 18252, EN 1303


• Drill Protection: Hardened steel pins and plates


• Body Finish: Nickel-plated

Applications

Intended for use in residential complexes, multi-family housing, office buildings, and commercial premises requiring certified key control and high resistance to forced entry. Compatible with modular and electronic access control systems. Meets project requirements for doors in access-controlled or shared-entrance environments handled by professional facility management.

Packaging & Shipping

Individually factory-sealed tamper-evident boxes contain the cylinder, three patented keys, a coded authorization card for key duplication, and installation instructions. No returns are accepted if packaging is opened to ensure product integrity.
