CES PSM 30/45 Euro Profile Cylinder EN 1303 Class 6.D Nickel Anti-copy Key

Product Overview

The CES PSM 30/45 nickel-plated euro cylinder lock is engineered for access control in residential and commercial properties demanding high-security protection. Featuring six spring-loaded, hardened steel pin tumblers for controlled access, it is certified to DIN 18252 and EN 1303, with a burglary resistance rating of class 6.D (EN 1303:2015).

A distinguishing feature of this model is its anti-copy key system, supported by a patent-protected key profile and a dedicated security card for key duplication. This eliminates procurement risks related to unauthorized key copying and ensures compliance with stringent access management protocols. Particularly suited for multi-family housing developers, facility managers, and projects requiring high levels of key control and certified intrusion resistance.

Key Features

• Anti-copy key system ? patent-protected key profile with duplication card required for new keys


• 6 hardened steel pin tumblers ? enhanced resistance to picking and forced entry


• Burglary resistance class 6.D ? certified to EN 1303:2015 for high-security installations


• Anti-drill and anti-pick protections ? additional steel pins and front plates safeguard against manipulation


• Nickel-plated brass body ? robust and corrosion-resistant for long service life


• Compatible with modular design ? allows integration into electronic CES access systems


• Complies with DIN 18252 ? suitable for standardized door hardware in commercial developments

Technical Specifications

• Cylinder Type: Euro profile double cylinder


• Lock Length: 30/45 mm


• Key Material: High-nickel brass (CDA)


• Number of Pins: 6 (hardened steel)


• Key Thickness: 3.5 mm


• Certification: DIN 18252


• Certification: EN 1303


• Burglary Resistance Class: 6.D (EN 1303:2015)


• Finish: Nickel-plated

Applications

Deployed in residential, commercial, and multi-unit buildings for primary and auxiliary door access control. Designed for doors requiring certified intrusion resistance and patent-protected key management, as in tenant housing, offices, and managed facilities. Supports integration with modular and electronic access control systems for flexible security hierarchies.

Packaging & Shipping

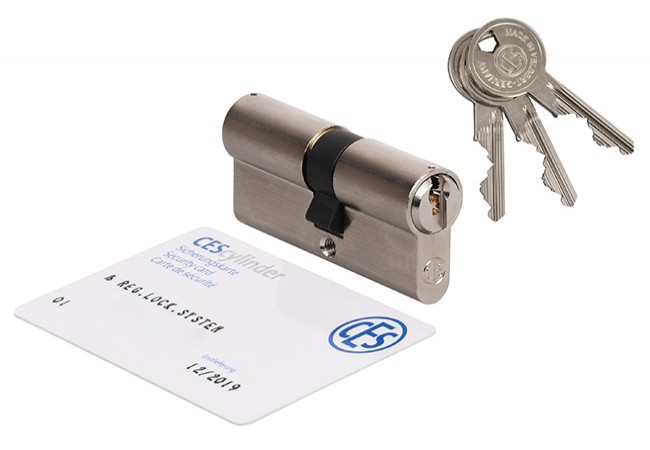

Each unit is delivered in a sealed, tamper-evident box containing the euro cylinder, three profile keys, a security duplication card, and mounting hardware. Packaging maintains product integrity during shipment and meets high-security B2B supply requirements.
