CES PSM 30/50 Cylinder Lock Insert EN 1303 Class 6.D Nickel Patented Key

Product Overview

The CES PSM 30/50 nickel cylinder lock insert is designed for access control in residential and commercial buildings where high security is required. Certified to DIN 18252 and EN 1303 (burglary resistance class 6.D per EN 1303:2015), it restricts entry to authorized users only. The cylinder is equipped with advanced anti-drill and anti-pick protection, and integrates hardened steel pins as part of its mechanism for additional physical defense.

A patented key profile with copying protection distinguishes this CES model from standard cylinders, eliminating procurement risk associated with unauthorized key duplication. Each cylinder includes a registered card to control the production of additional keys off-site. Security installers and property managers seeking robust, certifiable cylinders for sensitive facilities such as apartment complexes, offices, and institutional settings will find this product particularly suitable.

Key Features

• Certified burglary resistance class 6.D ? complies with EN 1303:2015 for high-security requirements


• Six spring-loaded pin tumblers and one in the body ? enhanced pick resistance using hardened steel components


• Patented key profile ? protection against unauthorized key copying and smooth operation


• Anti-drill protection ? front metal plates and pins shield the cylinder from drilling attacks


• Nickel-plated brass 3.5 mm key ? robust, high-durability key with ergonomic design


• Compatibility with electronic CES access systems ? supports integration into digital control architectures


• DIN 18252 and EN 1303 certified ? ensures recognized standards compliance for public and private sector procurement

Technical Specifications

• Length: 30/50 mm


• Material: Nickel-plated brass (cylinder and key)


• Number of Pins: 6 in tumbler, 1 in body (hardened steel)


• Key Thickness: 3.5 mm


• Key Material: High-nickel brass (CDA)


• Certification: DIN 18252


• Certification: EN 1303


• Burglary Resistance: Class 6.D (EN 1303:2015)


• Compatible Systems: CES electronic access control

Applications

Intended for use in residential, commercial, and institutional doors where certified high-security cylinder locks are required. Suitable for apartment buildings, offices, and facilities with strict access management needs. Compatible with integration into master key systems and electronic access control networks. Meets requirements for projects specifying DIN 18252 or EN 1303 certification.

Packaging & Shipping

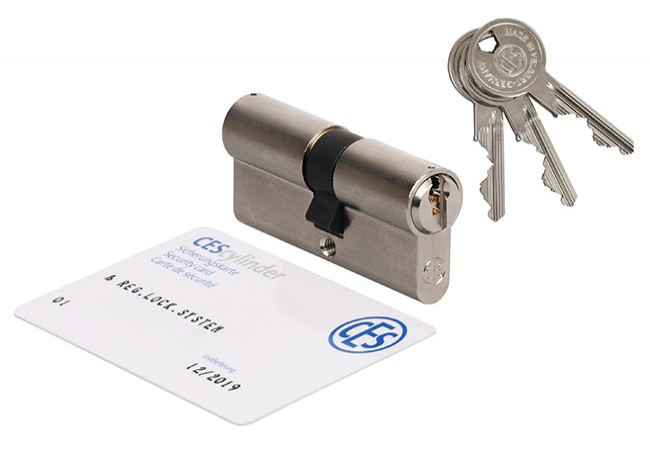

Each lock cylinder is delivered in a tamper-evident sealed box containing the cylinder, three patented cut keys, registration card for key duplication, and mounting hardware. Bulk packaging and custom options available for large orders.
