CES PSM 30/55 Euro Cylinder Lock EN 1303 Class 6.D Nickel Patented Key Profile

Product Overview

The CES PSM 30/55 nickel-plated cylinder lock is engineered for residential and commercial buildings, delivering controlled access through certified security features. Meeting DIN 18252 and EN 1303 standards with burglary resistance class 6.D (EN 1303:2015), it incorporates six spring-loaded pins and additional hardened steel elements to guard against forced entry, manipulation, and lock picking.

Its protected key profile, supported by a patent and a security card for key duplication, distinguishes this model from generic Euro cylinders. This eliminates unauthorized key copying risks in bulk housing or facility procurement, addressing strict site security requirements. Particularly well-suited for specification-driven projects and facility OEM procurement where certified, copy-protection access control is mandatory.

Key Features

• Burglary resistance class 6.D ? certified to EN 1303:2015, suitable for high-security applications


• Nickel-plated brass key ? 3.5 mm thickness offers durability and corrosion resistance


• Six spring-loaded pins ? hardened steel construction enhances protection against picking and drilling


• Patented key profile ? prevents unauthorized duplication, with included security card for controlled new key creation


• Anti-drill and anti-pick features ? metal pins and plates secure the cylinder face against forced entry


• Compatible with modular design ? allows integration into CES electronic access systems


• DIN 18252 and EN 1303 certified ? compliance for building and facility tenders

Technical Specifications

• Cylinder Length: 30/55 mm


• Key Material: Brass, high-nickel alloy (CDA), nickel plated


• Cylinder Construction: Hardened steel pins and plates


• Security Class: 6.D (EN 1303:2015)


• Certification: DIN 18252


• Certification: EN 1303


• Key Thickness: 3.5 mm


• Number of Keys Included: 3


• Key Profile: Patented with security card

Applications

Used in residential, commercial, and institutional buildings for door access control where certified security is required. Suitable for facility management, bulk construction projects, and high-security installations within OEM access control systems. Recommended for doors needing copy-protected key systems, anti-pick, and anti-drill protection in compliance with EN 1303 and DIN 18252.

Packaging & Shipping

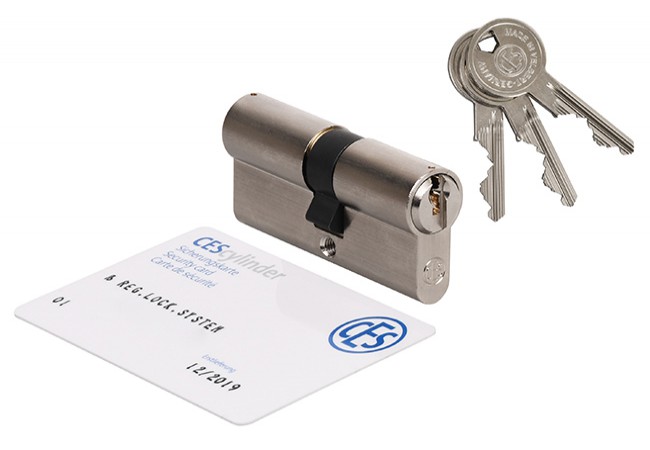

Each cylinder is shipped in a sealed box, including three patented keys, a security card for authorized key duplication, and installation instructions. Packaging ensures tamper-proof delivery and full product functionality.
