CES PSM 35/40 Euro Cylinder Lock EN 1303 6.D Nickel-Plated Anti-Drill Dimple Key

Product Overview

The CES PSM 35/40 nickel-plated euro profile cylinder is a high-security lock insert designed for use in residential and commercial facilities requiring controlled access. Manufactured in Germany and certified to DIN 18252 and EN 1303 with burglary resistance class 6.D, it features patented anti-burglary elements such as hardened steel pins and special drill- and pick-resistance measures. Each cylinder comes with three dimple keys protected by a duplication security card to prevent unauthorized key copying.

One feature distinguishing this SKU is its 3.5 mm thick, high-nickel brass key with a patented profile, providing both physical durability and legal protection against counterfeiting. This greatly reduces the risk of unauthorized access and copy fraud for facility managers and procurement officers. Recommended for institutional buyers, residential building developers, and security-conscious commercial projects requiring maximum cylinder security and reliable access management.

Key Features

• Certified burglary resistance class 6.D ? tested to EN 1303:2015 for high-security applications


• Patent-protected dimple key profile ? counters unauthorized key duplication, each set includes security card


• 6 pin tumblers, 1 in body, others in plug ? all made from hardened steel for enhanced break-in resistance


• Drill- and pick-resistance ? reinforced by metal pins and anti-manipulation front plates


• 3.5 mm thick key ? manufactured from high-nickel brass (CDA) for durability and lifespan


• Compatible with modular construction ? enables integration into electronic access control systems


• Complies with DIN 18252 and EN 1303 ? fits standardized European lockcases

Technical Specifications

• Cylinder Size: 35/40 mm


• Material: Nickel-plated brass, hardened steel elements


• Key Type: Dimple, patent-protected, 3.5 mm thickness


• Number of Pins: 6 spring-loaded (hardened steel), 1 in body


• Certification: EN 1303, class 6.D


• Certification: DIN 18252


• Key Duplication Protection: Security card system


• Anti-drill/Anti-pick: Reinforced with steel pins and plates


• Finish: Nickel

Applications

Used in residential apartment buildings, commercial property entrances, office doors, and facilities requiring restricted access and high-security standards. Suitable for integration into master key or electronic access control systems. Meets requirements for doors requiring EN 1303 certified burglary-resistant lock cylinders, particularly in new construction, retrofits, and institutional facilities.

Packaging & Shipping

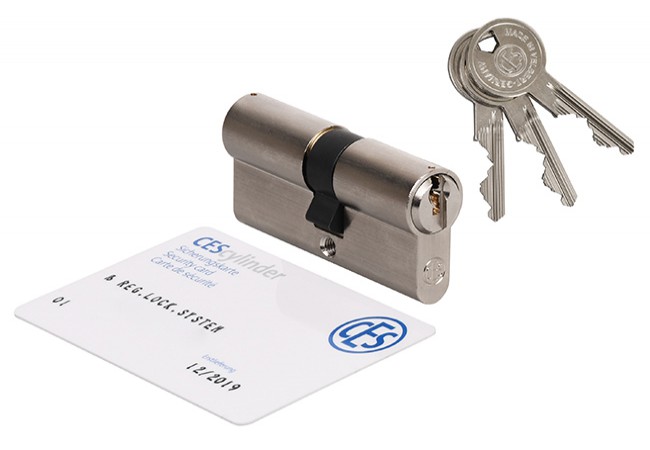

Each euro cylinder is supplied in a sealed, tamper-evident box that includes three patent-protected dimple keys, a duplication security card, mounting hardware, and installation instructions. Standard export packaging ensures product integrity during shipping.
