CES PSM 35/45 Cylinder Lock EN 1303:2015 Class 6.D Nickel-Plated Anti-Drill

Product Overview

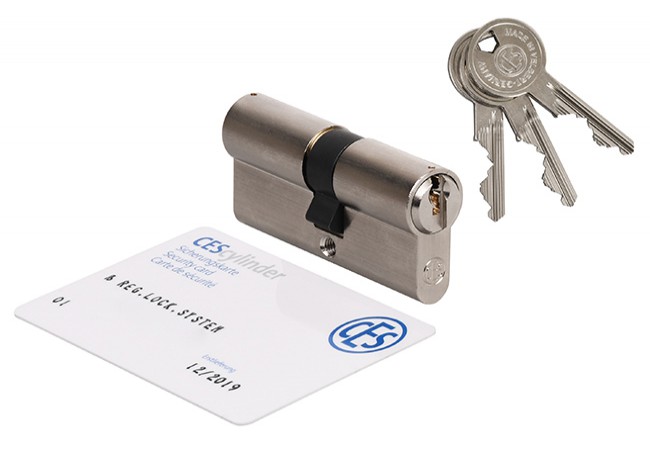

The CES PSM 35/45 cylinder lock is a nickel-plated mortise lock cylinder, engineered for access control in residential and commercial facilities. Certified to resistance class 6.D of EN 1303:2015 and compliant with DIN 18252, it offers robust protection against physical attacks and unauthorized access. Each set includes three cut keys with protected profiles, supplemented by a key duplication card to regulate additional key orders.

The defining feature is its anti-drill and anti-pick construction, incorporating hardened steel pins and front-mounted metal reinforcements that guard the cylinder from drilling and manipulation attempts. This feature mitigates procurement risk for facility managers seeking compliance with high-security standards and is especially recommended for specification in multi-dwelling residential projects or access-controlled office buildings.

Key Features

• 6 spring-loaded pins ? increased complexity for pick resistance


• Hardened steel components ? anti-drill and anti-manipulation protection


• Class 6.D burglary resistance ? EN 1303:2015 certified for high security


• Unique key profile ? patent-protected design prevents unauthorized duplication


• Key duplication card ? controlled key ordering enhances access control


• Nickel-plated finish ? corrosion resistance for durability in intensive use


• Compatible with CES electronic access ? supports integration with access management systems

Technical Specifications

• Cylinder Length: 35/45 mm


• Material: Hardened steel elements and high-nickel brass key (CDA)


• Finish: Nickel-plated


• Pins: 6 spring-loaded plus additional front pins and plates


• Certification: EN 1303:2015, resistance class 6.D


• Compliance: DIN 18252


• Keys Included: 3 cut keys


• Key Profile: Patent-protected, proprietary design


• Key Duplication: Card-based authorization system


• Modularity: Option for modular cylinder construction

Applications

Used in residential apartments, commercial office buildings, and institutional facilities requiring certified access control and burglary resistance. Suitable for entrance, corridor, and facility doors in environments where EN 1303 and DIN 18252 compliance is required. Can be integrated into OEM access management systems and bulk security upgrade projects.

Packaging & Shipping

Each cylinder lock is individually sealed in a tamper-proof box that includes three patent-protected cut keys, key duplication authorization card, and installation instructions. Bulk and OEM shipments use secure, labeled cartons to maintain product integrity.
