CES PSM 40/55 Euro Cylinder Lock EN 1303 Class 6.D Nickel 3 Patented Keys

Product Overview

The CES PSM 40/55 Cylinder is a double-sided Euro profile cylinder lock, primarily used in residential and commercial buildings where access control and certified security are required. It is manufactured according to German standards and complies with DIN 18252 and EN 1303, offering class 6.D burglary resistance as per EN 1303:2015. Each set includes three patented, profile-protected cut keys, and features anti-drill and anti-pick security measures for enhanced protection against unauthorized entry.

A key differentiator for this model is the patented brass key with nickel plating (CDA) and a card-based key duplication system, ensuring that only authorized personnel can request additional keys. This eliminates the risk of unauthorized key copying, a critical concern for facility and property managers. The CES PSM 40/55 is particularly suited for security-sensitive environments and access-controlled multi-tenant residential or commercial facilities requiring strict key management protocols.

Key Features

• Certified burglary resistance 6.D ? meets EN 1303:2015 for high-security requirements


• DIN 18252/EN 1303 compliant ? suitable for European-standard cylinder lock installations


• Anti-drill and anti-pick protection ? hardened steel pins, metal reinforcements, and anti-manipulation plates


• Patented key profile ? restricts unauthorized key copying, enhances key management security


• Card-based key duplication ? only authorized duplication by presenting the included code card


• Modular version available ? can be integrated into CES electronic access control systems


• Brass key with nickel plating ? heavy-duty, 3.5 mm thick for extended durability

Technical Specifications

• Cylinder Size: 40/55 mm


• Profile: Euro profile double-sided cylinder


• Key Material: Brass, high-nickel (CDA), thickness 3.5 mm


• Cylinder Material: Hardened steel components


• Security Class: 6.D (EN 1303:2015)


• Standard: DIN 18252


• Standard: EN 1303


• Included Keys: 3 patented cut keys


• Key Duplication: Card-based authorization system

Applications

Suitable for high-security doors in residential apartment buildings, office complexes, and commercial properties. The certified construction makes it appropriate for critical infrastructure, multi-tenant buildings, and access-controlled areas. Compatible with modular and electronic access control systems where certified lock cylinders and strict key duplication control are required.

Packaging & Shipping

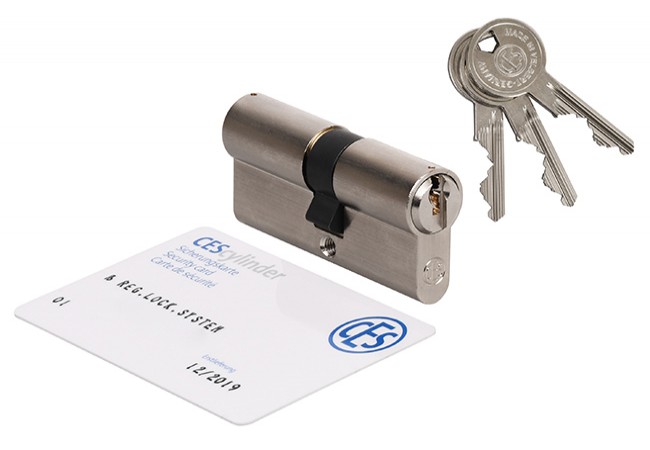

Standard export packaging in factory-sealed boxes for tamper-evident delivery. Each unit includes the cylinder, three patented keys, a key duplication card, and installation hardware.
