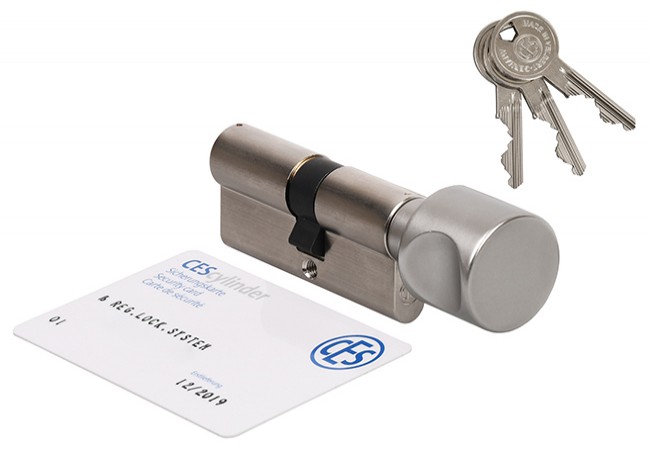

CES PSM 40G/35 Cylinder Lock with Nickel Knob EN 1303:2015 Class 6.D Patented Key

Product Overview

The CES PSM 40G/35 cylinder lock with nickel knob is a security access solution certified to DIN 18252 and EN 1303:2015, featuring resistance class 6.D. Used in residential and commercial buildings, it provides controlled entry for authorized persons only. The cylinder integrates six spring-loaded pins, including a hardened steel pin in the body, and additional security elements to defend against tampering and break-in attempts.

A key differentiator is the patented key profile with brass high-nickel composition (CDA) and protection against unauthorized duplication, enabling secure master keying and traceable access management. This feature eliminates procurement risk associated with key copying in multi-tenant settings and supports system integration with electronic access control. Especially suitable for bulk procurement in residential complexes, managed facilities, and new-build commercial projects requiring certified high-security cylinders.

Key Features

• Certified security class 6.D ? meets EN 1303:2015 break-in resistance for commercial and residential properties


• DIN 18252 compliant ? compatible with standard lock cases and European cylinders


• Patented key profile ? prevents unauthorized duplication, supports access card-controlled key copying


• Anti-drilling and anti-picking features ? hardened steel pins and front plates protect against manipulation


• High-nickel brass keys (CDA) ? durable, corrosion-resistant for frequent use environments


• Modular design option ? allows system expansion or integration with CES electronic access controls


• Supplied with security card ? enables traceable key reproduction only for authorized users

Technical Specifications

• Cylinder Length: 40G/35 mm


• Security Class: 6.D (EN 1303:2015)


• Standard Compliance: DIN 18252, EN 1303


• Pin System: 6 spring-loaded pins plus hardened body pin


• Material (Key): High-nickel brass (CDA)


• Finish: Nickel


• Included Keys: 3 cut keys


• Security Card: Included for key duplication control


• Front Plate: Hardened metal security plate

Applications

Used in multi-family residential buildings, commercial offices, managed property complexes, and institutional facilities where high-security, certified access control is required. Compatible with modular master keying setups and can be incorporated into electronic access systems. Applicable for fire-rated doors and environments needing resistance to drilling, picking, and manipulation.

Packaging & Shipping

Each cylinder unit is packaged in a sealed, tamper-evident box with 3 keys, security card for controlled key duplication, mounting hardware, and installation instructions. Standard export packaging ensures product integrity during transit.
