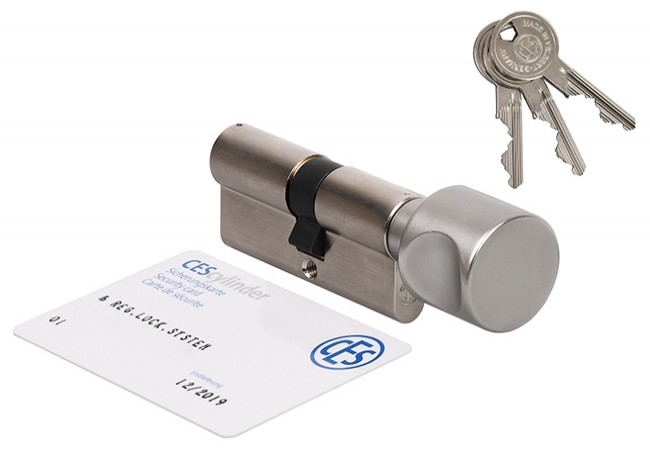

CES PSM 40G/45 Cylinder Lock Nickel Knob EN 1303 Class 6.D Anti-Drill Key Card

Product Overview

CES PSM 40G/45 cylinder lock with nickel knob is designed for residential and commercial buildings requiring certified security access control. The product complies with DIN 18252 and EN 1303 standards, securing areas for authorised personnel only and providing burglary resistance class 6.D as per EN 1303:2015. Hardened steel spring-loaded pins ensure resistance to drilling and picking under high-traffic, professional use.

The distinguishing feature of this cylinder is its patent-protected key profile, which includes a key duplication card for registered reproduction?eliminating counterfeit risk in facility management and ensuring traceable access issuance. This makes CES PSM 40G/45 particularly well-suited for property managers, OEM integrators, and bulk procurement for hospitality or multi-tenancy applications where secure key control is critical.

Key Features

• 6 spring-loaded pins ? enhanced security against picking with hardened steel components


• Burglary resistance class 6.D ? certified by EN 1303:2015 for high protection in demanding environments


• Nickel knob ? facilitates user-friendly access and durability


• Patent-protected key profile ? prevents unauthorised duplication and ensures traceable access


• Anti-drill features ? steel pins and plates guard cylinder against drilling and forced entry


• Modular version availability ? optional integration into electronic CES access systems


• Key duplication card ? secure, system-based replacement via proprietary card

Technical Specifications

• Cylinder Length: 40G/45 mm


• Knob Material: Nickel


• Key Material: Brass, high nickel (CDA standard)


• Certification: DIN 18252


• Certification: EN 1303


• Burglary Resistance Class: 6.D (EN 1303:2015)


• Number of Keys: 3


• Pin System: 6 spring-loaded pins, hardened steel


• Anti-drill: Steel pins and plates integrated


• Key Profile: Patent-protected, special shape

Applications

Used in multi-family residential buildings, hospitality, offices, and commercial real estate requiring certified cylinder locks. Compatible with doors needing high burglary resistance and restricted access control. Integration with CES electronic access systems possible for OEM or facility-wide deployments. Suitable for property management and bulk installations where key security and traceable distribution are mandatory.

Packaging & Shipping

Each unit is packed in a sealed tamper-evident box containing the cylinder, knob, three patented keys, key duplication card, and installation accessories. Standard export packaging prepared for bulk shipments.
