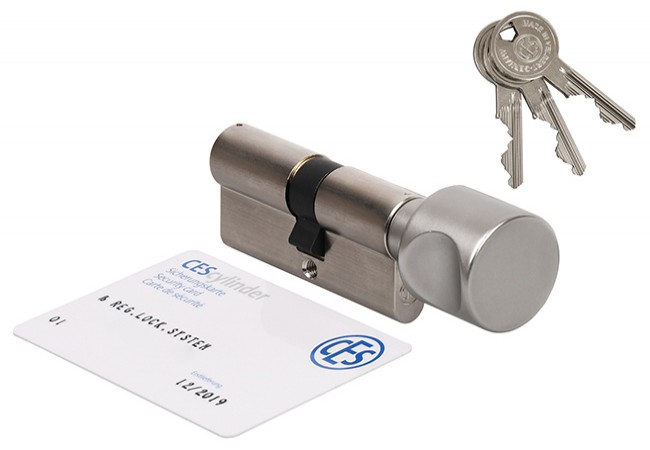

CES PSM 45G/35 Cylinder Lock Thumbturn EN 1303 6.D Nickel Patented Key System

Product Overview

The CES PSM 45G/35 Cylinder Lock with Thumbturn is a high-security locking cylinder designed for residential buildings, multi-family complexes, and commercial properties requiring robust access control. Certified to DIN 18252 and EN 1303 with break-in resistance class 6.D (EN 1303:2015), it features German-engineered pin-tumbler construction, drill and pick resistance, and patent-protected key technology. Each lock includes three precision-milled, nickel-plated brass keys and an access card for authorized duplication.

A distinctive advantage of this model is its patented anti-copy key system, which prevents unauthorized key duplication by requiring the original card for backup key production. This eliminates the risk of uncontrolled key proliferation in facility management, making it suitable for property managers, office administrators, and bulk procurement in housing developments, especially where regulatory compliance and high tenant turnover increase the need for strict access control.

Key Features

• Certified break-in protection 6.D ? meets EN 1303:2015 class 6.D for burglary resistance


• Drill and pick resistance ? hardened steel pins and front plates protect against forced entry


• Patent-protected key profile ? secures against illegal key copies and unauthorized access


• Three 3.5 mm nickel-plated brass keys ? high durability for frequent use


• Access card for key duplication ? only authorized holders can obtain extra keys


• Thumbturn operation ? allows quick locking/unlocking from inside without a key


• DIN 18252 and EN 1303 certified ? ensures compliance with European lock standards

Technical Specifications

• Lock Type: Cylinder with thumbturn


• Length: 45G/35 (nominal dimensions, dual-side measured from cam)


• Certification: DIN 18252


• Certification: EN 1303


• Break-in Resistance: Class 6.D (EN 1303:2015)


• Pin Tumblers: 6 spring-loaded, 1 in body (hardened steel)


• Key Material: Nickel-plated brass (CDA)


• Key Thickness: 3.5 mm


• Key Profile: Patented, anti-copy


• Included Keys: 3 milled keys

Applications

Used in residential buildings, apartment complexes, and commercial properties where high levels of access control and break-in resistance are required. Suitable for new builds, retrofit upgrades, and replacement scenarios demanding certified anti-burglary cylinder locks. Compatible with modular designs and can be integrated into electronic CES access control systems for larger facility projects.

Packaging & Shipping

Each cylinder lock is individually sealed in a tamper-evident box containing the cylinder, three keys, access authorization card for key duplication, mounting hardware, and installation instructions. Standard export packaging for shipping and secure OEM bundling available for bulk orders.
