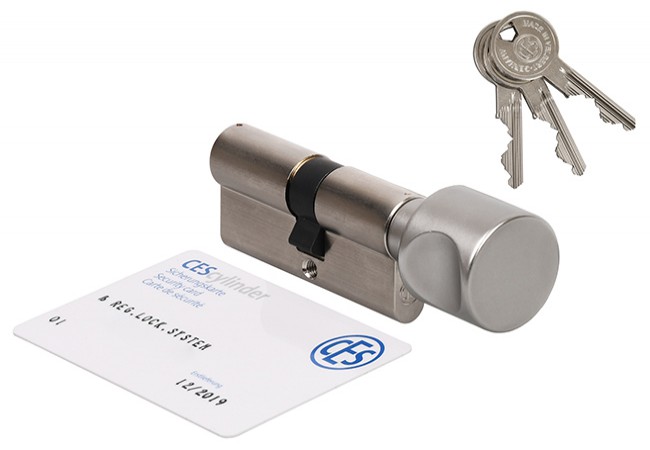

CES PSM 60G/30 Euro Profile Cylinder Lock with Knob Class 6.D EN 1303 Nickel

Product Overview

CES PSM 60G/30 is a certified Euro profile double cylinder lock with knob, offering high-security access control for commercial and residential doors. Manufactured to DIN 18252 and EN 1303 standards and certified to burglary resistance class 6.D (EN 1303:2015), it is suitable for environments requiring robust protection and is widely specified for managed buildings, offices, and multi-unit dwellings.

The distinguishing feature of this model is its patent-protected, modular key profile, which prevents unauthorized key duplication and simplifies rekeying within master key systems. This significantly reduces procurement risk for facility managers needing controlled access and traceable key issuance. Recommended for specifiers handling projects with high-security demands, key authorization management, and requirements for anti-manipulation protection.

Key Features

• Certified burglary resistance class 6.D ? tested to EN 1303:2015 for high-security doors


• Anti-drill and anti-pick ? front steel pins and plates protect against manipulation and intrusion tools


• Modular system compatibility ? suits integration into master key and electronic access control CES systems


• Patent-protected key profile ? only authorized duplication via security card, reducing misuse risk


• Six pin tumblers with springs ? precision German engineering for smooth, reliable operation


• High-nickel brass key ? 3.5 mm robust construction for long service life and resistance to wear


• DIN 18252 compliant ? assures compatibility with standard European door fittings

Technical Specifications

• Cylinder Type: Euro profile double with knob


• Length: 60G/30 mm


• Key Type: Nacinane, 3.5 mm thick, high-nickel plated brass


• Number of Pins: 6 in barrel, 1 in body, all spring loaded, hardened steel


• Anti-drill Protection: Hardened steel pins and front plates


• Certification: DIN 18252


• Certification: EN 1303


• Security Class: 6.D (EN 1303:2015)


• System Compatibility: Modular, electronic control CES systems possible


• Key Duplication: Patent-protected, card-authenticated

Applications

Used in commercial office buildings, residential complexes, managed access facilities, and anywhere certified high-security cylinder locks are required. Suitable for retrofitting or new installations with Euro profile doors, compatible with fire and safety rated doors per DIN and EN standards. Integrates into master key systems or CES electronic access management for access traceability and control.

Packaging & Shipping

Each cylinder is factory-sealed in a tamper-evident box, including 3 cut keys, a security key duplication card, installation hardware, and user documentation. Bulk orders shipped cartonized with individual units sealed for shipment integrity.
