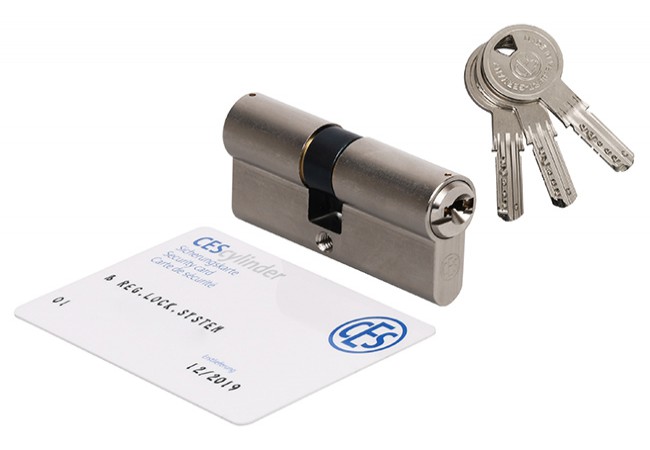

CES WSM 35/55 Cylinder Lock Nickel EN 1303 6.D Copy-Protected Key Profile

Product Overview

The CES WSM 35/55 nickel cylinder lock is engineered for high-security access control in residential and commercial construction. Certified to DIN 18252 and EN 1303 standards, it features advanced protection mechanisms and is backed by German manufacturing quality. Each cylinder includes three specially drilled keys, with anti-drill and anti-pick elements integrated for enhanced safety, making it suitable for large-scale procurement and building fit-outs.

The key differentiator of this SKU is its patented, copy-protected key profile combined with a key duplication card provided per set. This eliminates unauthorized duplication risk and simplifies secure management of additional keys for facility managers or contractors. Its class 6.D certified security rating and modular build make it ideal for property developers, OEM projects, and installations requiring integration into electronic access systems.

Key Features

• Patented copy-protected key profile ? prevents unauthorized key duplication and ensures security


• Class 6.D certified security ? verified to DIN 18252 and EN 1303 for highest protection requirements


• Anti-drill and anti-pick construction ? integrated hardened, nickel-plated steel elements provide strong resistance to forced entry


• Three precision-milled keys ? each set includes 3 massy, high-nickel brass keys for durability


• 16 blocking elements ? including 5 spring-loaded vertical pins, 11 additional pins, and 2 closing bars for complex locking


• Brass cylinder body with nickel finish ? corrosion-resistant and robust for long-term use


• Key duplication card included ? enables controlled ordering of extra keys, supporting facility security policies

Technical Specifications

• Cylinder Length: 35/55 mm


• Material: Brass cylinder body, high-nickel brass keys


• Finish: Nickel-plated, hardened steel elements


• Number of Keys: 3 (drilled, massy, copy-protected profile)


• Number of Blocking Elements: 16


• Certification: DIN 18252


• Certification: EN 1303


• Security Class: 6.D


• Anti-drill Protection: Yes


• Anti-pick Protection: Yes


• Modular Version Availability: Yes


• Electronic Access Integration: Supported

Applications

Used in residential, commercial, and institutional buildings for main entry doors, controlled access systems, and multi-unit complexes. Suitable for large construction projects, OEM installations, and property management requiring certified, high-security locking cylinders. Compatible with electronic access systems, modular master-key configurations, and areas requiring anti-burglary features per DIN/EN standards.

Packaging & Shipping

Each cylinder lock is individually boxed in a sealed, tamper-evident package, with 3 keys, a key duplication card, and installation accessories included. Bulk orders are available for project procurement, ensuring secure and intact delivery.
