CES WSM 50/50 Cylinder Lock EN 1303 Anti-Drill Patented Key Profile Nickel

Product Overview

The CES WSM 50/50 cylinder lock insert with key profile protection is a high-security component designed for large-scale residential and commercial buildings. Manufactured in Germany and certified to DIN 18252 and EN 1303, it meets strict standards for burglary resistance and operational reliability. The cylinder offers advanced anti-drill and anti-pick protection through a robust 16-element locking system built from hardened, nickel-plated steel.

A differentiating feature of this SKU is its unique patented key profile with anti-copy security, supplied with a security card enabling authorized key duplication only via the manufacturer. This directly addresses procurement risks associated with unauthorized duplication in managed facilities or multi-tenant properties. It is particularly suited for developers, property managers, and contractors handling installations where high key security and traceability are required.

Key Features

• 16-element locking mechanism ? includes 5 vertically acting pin tumblers and 11 additional blocking elements plus 2 locking bars


• Certified to DIN 18252 and EN 1303 ? meets European standards for security cylinders in residential and commercial buildings


• Anti-drill and anti-pick features ? offers robust protection against common forced entry methods


• Hardened, nickel-plated steel ? enhances resistance to manipulation and physical attack


• Patented key profile ? prevents unauthorized duplication and enables registration to a security card system


• Brass key with high nickel content (CDA) ? heavy-duty build for professional use and long service life


• Compatible with electronic access control ? can be integrated into CES modular and electronic security systems

Technical Specifications

• Cylinder Length: 50/50 mm


• Material: Hardened, nickel-plated steel


• Locking Elements: 16 (5 pin tumblers, 11 blocking elements, 2 locking bars)


• Key Material: High-nickel brass (CDA)


• Certification: DIN 18252


• Certification: EN 1303


• Anti-Drill Protection: Yes


• Anti-Pick Protection: Yes


• Key Duplication Protection: Security card supplied

Applications

Used in residential and commercial construction, property management, and multi-tenant buildings requiring enhanced access control and high burglary resistance. Suitable for doors in large projects, buildings with restricted key duplication policies, and facilities integrating modular cylinder systems or electronic access controls. Recommended for bulk procurement by developers, general contractors, and facility managers.

Packaging & Shipping

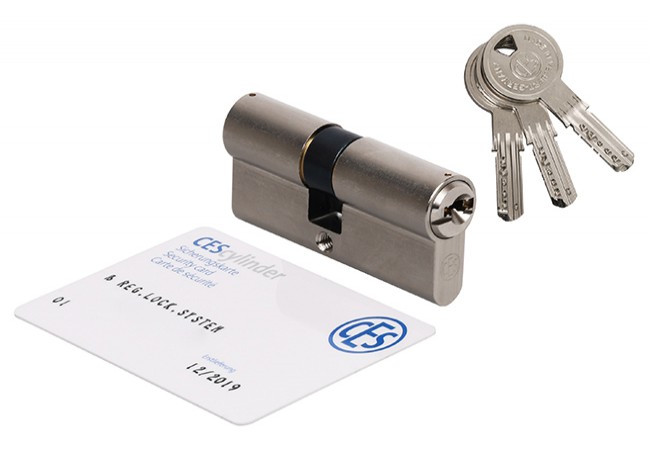

Each cylinder is packed in a tamper-evident sealed box and includes three dimple keys, security card for key duplication, and installation accessories. Packaging ensures product integrity for security compliance during shipping and storage.
