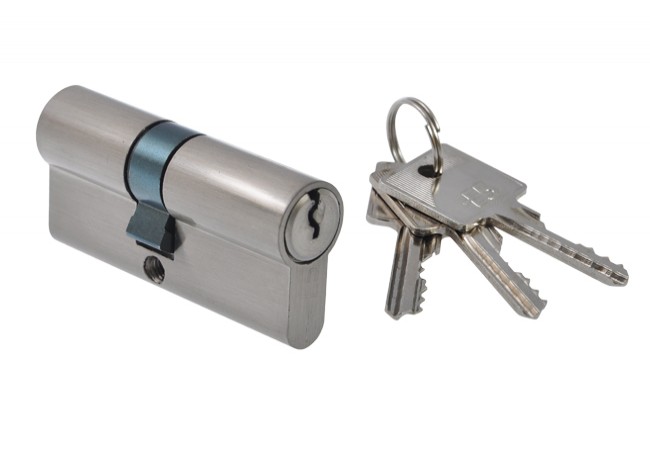

Cylinder insert E5 40/50 nickel color

E5 Drum Core ? A Temporary Security Solution for Your Investment

The E5 Drum Core door cylinder offers a robust and cost-effective solution, ideal for temporary applications such as construction site security. This cylinder features 5 moving pins, guaranteeing smooth operation and exceptional durability. Equipping your doors with the E5 cylinder enhances security, even for short-term use. E5 cylinders come with 3 high-quality keys, and their elegant brushed nickel finish complements any door style. The E5 cylinder is a functional product that expertly blends durability and aesthetic appeal with affordability. The E5 cylinder bears the B construction mark and holds a National Technical Approval issued by the Institute of Building Technology (ITB).

• Complies with standard PN-EN 1303:2015-07: 1 4 0 0 0 B 2 0


• 5 moving pins


• Durability: minimum 25,000 cycles


• Actual key combinations: minimum 3,000


• Temperature resistance: -20°C to 80°C


• Color: brushed nickel


• Includes: 3 keys, mounting screw

Installation:
- Insert keys into the cylinder and rotate to allow insertion into the lock.
- Once the cylinder is in place, tighten the mounting screw.
- Avoid using heavy tools or striking the cylinder during installation.
- The cylinder should not protrude more than 3 mm beyond the door face.

Maintenance:
- Maintain twice a year or every 5,000 cycles using specialist cleaning products. DO NOT OIL! DO NOT GREASE!

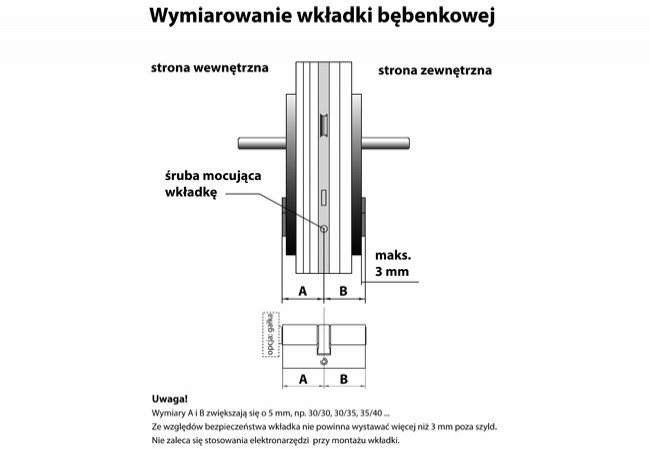

How to choose the right cylinder size?

Watch the video below.
