E5 10/30 cylinder insert, nickel color

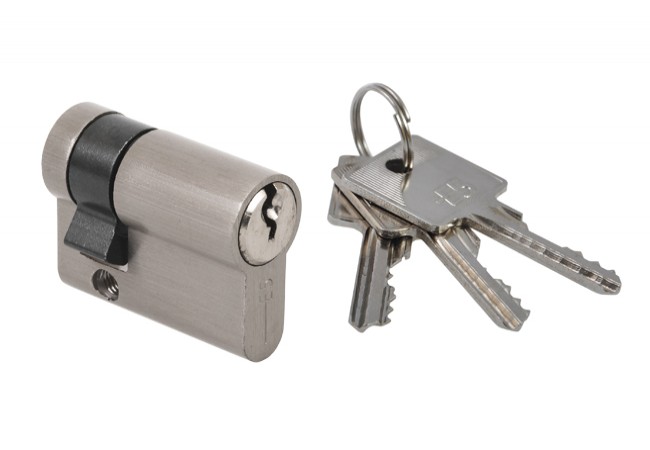

E5 Drum Cylinder ? Temporary Security Solution for Your Investment

The E5 drum cylinder for doors is a robust and economical solution, ideal for temporary applications such as construction site security. This cylinder features 5 movable pins, guaranteeing smooth operation and durability. Equipping your doors with the E5 cylinder enhances security, even for short-term use. E5 cylinders come with 3 serrated keys, and their elegant brushed nickel finish complements any door style. The E5 cylinder is a functional product that combines durability and attractive aesthetics while remaining budget-friendly. The E5 cylinder is marked with the 'B' construction sign and holds a National Technical Approval issued by the Institute of Building Technology (ITB).

• Compliant with PN-EN 1303:2015-07 standard: 1 4 0 0 0 B 2 0


• 5 movable pins


• Durability: minimum 25,000 cycles


• Actual key combination count: minimum 3,000


• Temperature resistance: -20°C to 80°C


• Finish: Brushed Nickel


• Includes: 3 serrated keys, mounting screw

Installation:
- Insert keys into the cylinder and turn to allow the cam to facilitate installation.
- After placing the cylinder in the lock, tighten the mounting screw.
- Do not use heavy tools or strike the cylinder during installation.
- The cylinder should not protrude more than 3 mm beyond the door plates.

Maintenance:
-Maintain twice a year or every 5,000 cycles using specialist products. DO NOT OIL! DO NOT GREASE!

How to choose the right cylinder size?

Watch the video below.
