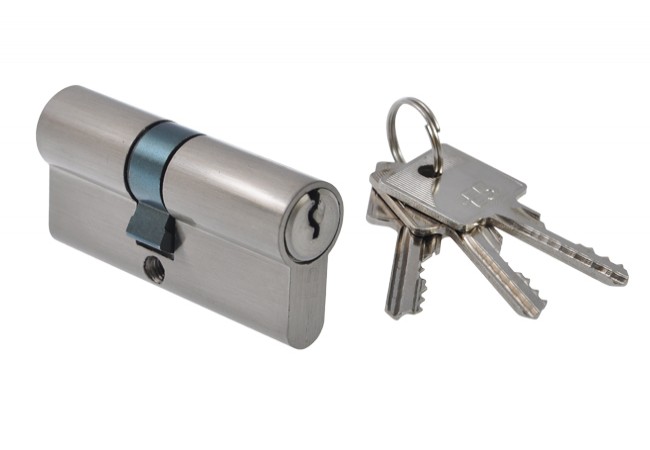

E5 35/55 cylinder insert, nickel color

E5 Drum Core: A Temporary Security Solution for Your Investment

The E5 Drum Core door cylinder offers a robust and economical solution, perfectly suited for temporary applications?such as securing construction sites. This cylinder features 5 movable pins, ensuring smooth operation and exceptional durability. Equipping your doors with the E5 cylinder enhances security, even for short-term use. E5 cylinders come with 3 high-quality, precisely cut keys, and their elegant matte nickel finish complements any door style. The E5 cylinder is a functional product that blends durability and attractive aesthetics while remaining budget-friendly. The E5 cylinder is certified with the "B" construction mark and holds a National Technical Approval issued by the Institute of Building Technology (ITB).

• Compliant with PN-EN 1303:2015-07 standard: 1 4 0 0 0 B 2 0


• 5 movable pins for enhanced security and smooth operation


• Durability: minimum 25,000 cycles


• Actual key combination possibilities: minimum 3,000


• Temperature resistance: -20°C to 80°C


• Finish: elegant matte nickel


• Includes: 3 precisely cut keys and mounting screw

Installation:
- Insert keys into the cylinder and turn to allow for easy installation.
- After inserting the cylinder into the lock, tighten the mounting screw.
- Avoid using heavy tools or striking the cylinder during installation.

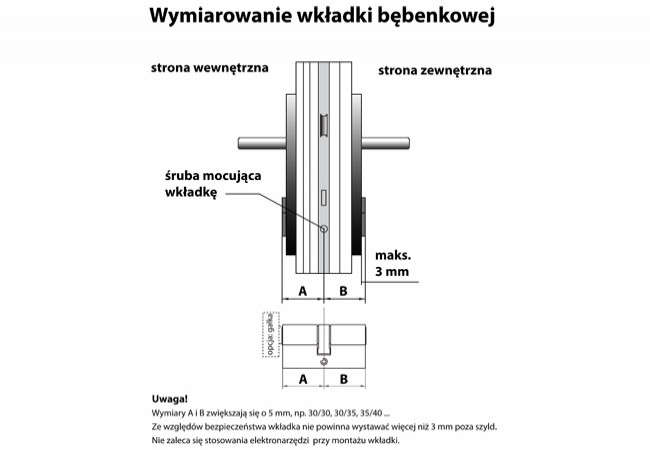

- The cylinder should not protrude more than 3 mm beyond the door plates.

Maintenance:
- Maintain twice a year or every 5,000 cycles using specialized preparations. DO NOT OIL! DO NOT GREASE!

How to choose the right cylinder size?

Watch the video below.
