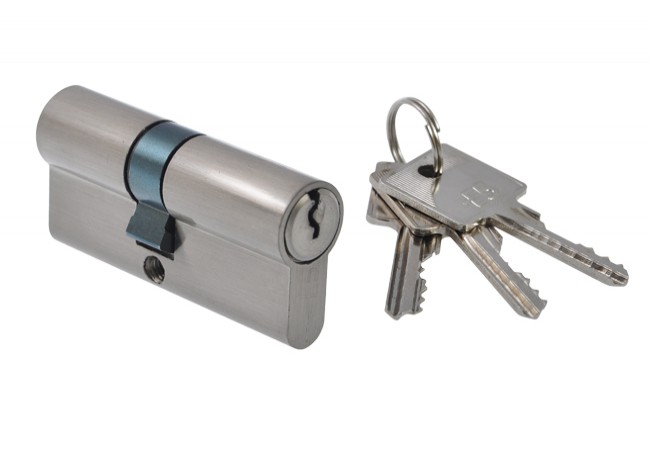

E5 40/60 cylinder insert, nickel color

E5 Drum Cylinder ? Your Temporary Security Solution

The E5 Drum Cylinder for doors is a robust yet economical solution, perfectly suited for temporary applications ? such as securing construction sites. This cylinder features 5 movable pins, guaranteeing smooth operation and exceptional durability. Equipping your doors with the E5 cylinder enhances security even in short-term deployments. E5 cylinders come with 3 precision-cut keys, and their elegant brushed nickel finish complements any door style. The E5 cylinder is a functional product that expertly blends durability and attractive aesthetics while remaining budget-friendly. The E5 cylinder is marked with the B construction symbol and holds a National Technical Approval issued by the Building Technology Institute (ITB).

• Compliant with PN-EN 1303:2015-07 standard: 1 4 0 0 0 B 2 0


• 5 movable pins


• Durability: minimum 25,000 cycles


• Actual key combinations: minimum 3,000


• Temperature resistance: -20°C to 80°C


• Finish: Brushed Nickel


• Includes: 3 precision-cut keys, mounting screw

Installation:
- Insert keys into the cylinder and turn to allow for insertion into the lock.
- After inserting the cylinder into the lock, tighten the mounting screw.
- Avoid using heavy tools or striking the cylinder during installation.
- The cylinder should not protrude more than 3 mm beyond the door plates.

Maintenance:
- Maintain twice a year or every 5,000 cycles using specialist products. DO NOT OIL! DO NOT GREASE!

How to choose the right cylinder size?

Watch the video below.
