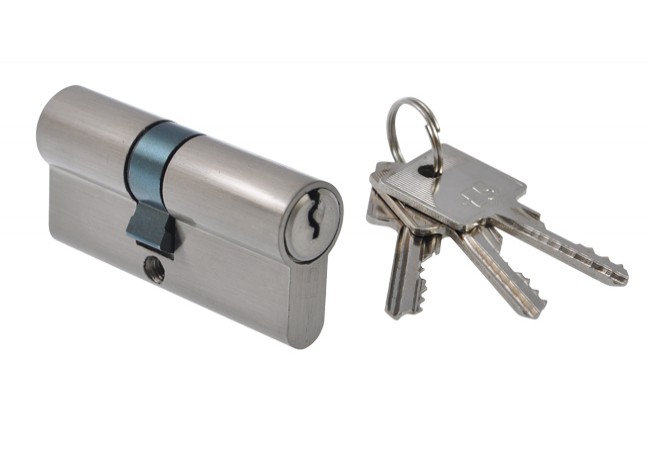

E5 45/45 cylinder insert, nickel color

E5 Drum Cylinder ? A Temporary Security Solution for Your Investment

The E5 Drum Cylinder door lock offers a robust yet economical solution, ideal for temporary applications such as construction site security. This cylinder features 5 movable pins, ensuring smooth operation and lasting durability. Equipping your doors with the E5 significantly enhances security, even for short-term use. The E5 cylinders come with 3 precisely cut keys, and their elegant matte nickel finish complements any door style. The E5 cylinder is a functional product that blends durability and aesthetic appeal with affordability. The E5 cylinder carries the Building Mark B and boasts a National Technical Approval issued by the Institute of Building Technology (ITB).

• Compliant with standard PN-EN 1303:2015-07: 1 4 0 0 0 B 2 0


• 5 movable pins


• Durability: minimum 25,000 cycles


• Actual key combination count: minimum 3,000


• Temperature resistance: -20°C to 80°C


• Color: matte nickel


• Includes: 3 precisely cut keys, mounting screw

Installation:
- Insert keys into the cylinder and turn to allow for easy installation.
- After placing the cylinder in the lock, tighten the mounting screw.
- Do not use heavy tools or strike the cylinder during installation.
- The cylinder should not protrude more than 3 mm beyond the door panels.

Maintenance:
- Maintain twice a year or every 5,000 cycles using specialized preparations. DO NOT OIL! DO NOT GREASE!

How to choose the right cylinder size?

Watch the video below.
