Gerda EVO 30/30 Cylinder Lock Insert Nickel Satin PN-EN 1303:2015-07 Class 5.1 B

Product Overview

The Gerda EVO 30/30 satin nickel cylinder lock insert provides anti-burglary protection for commercial and residential doors and is certified to PN-EN 1303:2015-07 in class 5.1 B. Used in fire-rated joinery and high-security environments, it offers resistance to both bumping and lock picking, with a tested mechanical durability of at least 100,000 cycles. The product includes 5 high-precision dimple keys and is rated for temperature operation from -20°C to +80°C.

What distinguishes this model is its advanced key security system, featuring twelve tumblers in a double row and three side pins for a total of 9,300,000 possible combinations. This significantly reduces the risk of illicit key duplication and provides procurement managers with verified, traceable access control. Particularly recommended for bulk procurement by security-sensitive facilities such as banks, public buildings, and fire-protection contractors.

Key Features

• Certified anti-burglary insert ? PN-EN 1303:2015-07 class 5.1 B for high-security applications


• Advanced key security ? 12 tumblers and 3 side tumblers, 9,300,000 code combinations


• Antidrilling protection ? 2 hardened nickel-plated steel pins in the body prevent drill attacks


• Antibumping system ? prevents forced entry through bumping methods


• Corrosion resistant ? suitable for harsh environments and long service life


• Mechanical durability ? tested minimum 100,000 operational cycles


• Temperature resistance ? functionality sustained from -20°C to +80°C

Technical Specifications

• Length: 30/30 mm


• Material: Brass body, nickel satin finish


• Keying: 5 dimple keys of new silver alloy


• Tumber Count: 12 main, 3 side


• Key Combination: 9,300,000


• Antidrilling Protection: 2 hardened steel pins


• Bumping Resistance: Yes


• Mechanical Durability: ? 100,000 cycles


• Temperature Range: -20°C to +80°C


• Certification: PN-EN 1303:2015-07 class 5.1 B


• Attack Resistance: Class C (3/5 min drilling/mechanical)


• Corrosion Resistance: High

Applications

Used in security doors, fire-rated joinery, institutional and commercial buildings, banks, public administration offices, and apartment complexes. Suitable for installations requiring certified burglary resistance and enhanced access control, such as fire-protection assemblies and environments exposed to harsh weather or high use frequency.

Packaging & Shipping

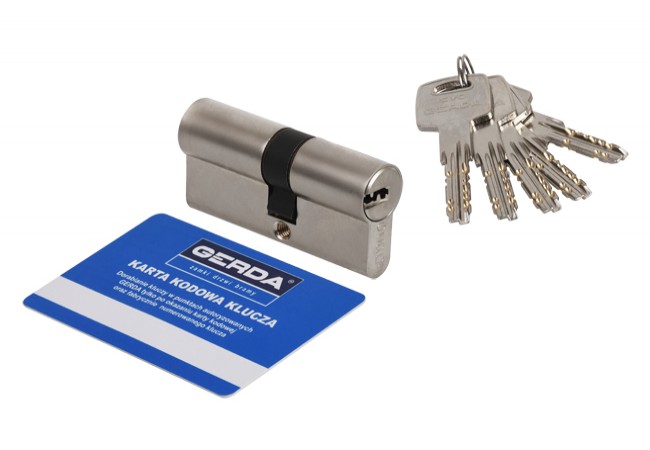

Each unit is supplied in an aesthetic box including the cylinder insert, 5 dimple keys, fixing screw, and basic instructions. Standard export packaging suitable for wholesale and OEM orders.
