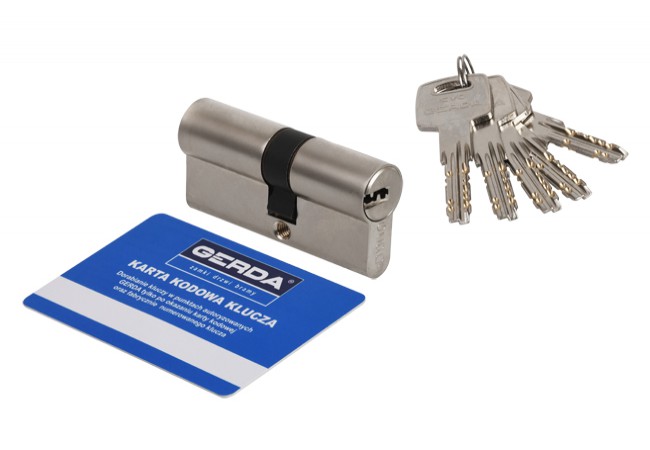

Gerda EVO 30/40 Cylinder Lock Satin Nickel Class 5 12-Pin PN-EN 1303:2015-07 Certified

Product Overview

The Gerda EVO 30/40 satin nickel cylinder provides anti-burglary lock protection for doors in residential and commercial buildings, particularly where enhanced security and certification are required. Certified to PN-EN 1303:2015-07 and featuring ITB approval for fire-resistant joinery, this cylinder is engineered for reliability under frequent use and varying temperature conditions (-20°C to +80°C).

What sets this SKU apart is its class 5 key security with 12 pins (9 in two rows plus 3 side pins) and 9,300,000 possible key combinations, dramatically reducing procurement risk linked to key duplication vulnerabilities. This is especially valuable for institutional procurement and multi-tenancy environments requiring high security and controlled key management. Well-suited for bulk installations in certified fire-rated doors for property managers, public buildings, and new construction projects.

Key Features

• Certified PN-EN 1303:2015-07 ? complies with leading European cylinder standards for security and durability
• Class 5 key protection ? 12 pin system and 9,300,000 possible key combinations prevent unauthorized duplication
• Anti-bumping and anti-picking design ? advanced mechanism deters common forced entry methods
• Hardened steel anti-drill pins ? provide resistance to mechanical attack up to 3/5 minutes (Class C)
• High corrosion and temperature resistance ? rated for use from -20°C to +80°C
• Durability ? tested to a minimum of 100,000 mechanical cycles for long service life
• Includes 5 nickel silver, wear-resistant dimple keys for extended key life

Technical Specifications

• Length: 30/40 mm
• Material: Brass body, nickel plated
• Finish: Satin nickel
• Key System: 12 pins (9 in two rows + 3 side pins)
• Key Combinations: 9,300,000
• Drill Resistance: Class C (3/5 minutes)
• Bumping Resistance: Yes
• Corrosion Resistance: High
• Operating Temperature: -20°C to +80°C
• Certification: PN-EN 1303:2015-07
• Approval: ITB (for fire-resistant joinery)
• Mechanical Durability: Minimum 100,000 cycles
• Key Material: Nickel silver
• Number of Keys: 5

Applications

Used for securing external and internal doors in residential buildings, offices, public facilities, and multi-tenant projects. Approved for use in fire-rated (ITB-certified) doors, security doors, and any location requiring high pin-code security, anti-bumping mechanisms, and controlled key duplication. Particularly relevant for property managers and institutional buyers specifying standardized cylinders for bulk procurement.

Packaging & Shipping

Supplied in aesthetic retail box packaging. Each unit includes the cylinder, five nickel silver dimple keys, mounting screw, and installation instructions.
