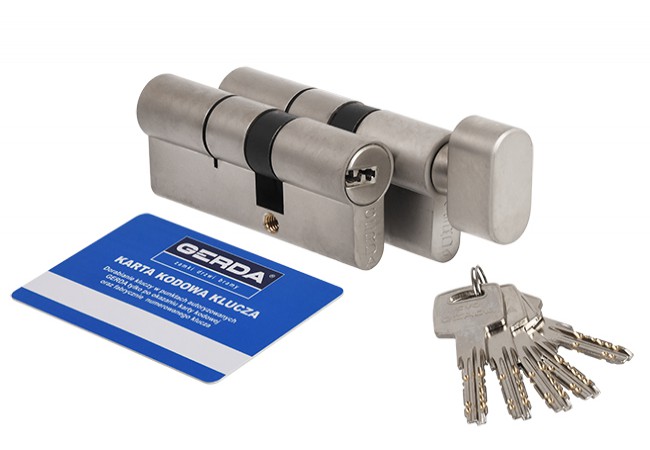

Gerda EVO 30/45 + 30g/45 Euro Cylinder Satin Nickel Class 5 Key Security EN 1303

Product Overview

Gerda EVO 30/45 + 30g/45 Cylinder Set in satin nickel is a high-security euro-profile lock cylinder designed for use in residential and commercial doors requiring advanced protection. Featuring anti-burglary certification to PN-EN 1303:2015-07 and compliant with ITB fire door evaluation, this cylinder provides robust performance under demanding conditions, including extreme temperature resistance from -20°C to +80°C.

What differentiates this SKU is its advanced key system: 12 pin tumblers arranged in two rows and three lateral pins, yielding up to 9,300,000 possible key code combinations and class 5 key security. This high level of key complexity effectively reduces risk of unauthorized duplication and lock manipulation, making it ideal for bulk procurement in access control for office buildings, multi-unit residential complexes, and fire-rated door installations where key control is critical.

Key Features

• Anti-burglary certification PN-EN 1303:2015-07 ? assures compliance with rigorous European standards


• Fire door compatibility ? evaluated by ITB for use with fire-resistant joinery


• Hardened nickel-plated steel anti-drill pins ? protects against drilling attacks


• Advanced key security ? 12 pins, 9,300,000 combinations, class 5 rated for duplication control


• Bumping and lockpicking resistance ? innovative key design resists common intrusion methods


• Corrosion resistance ? maintains performance in humid environments and outdoor access points


• High durability ? tested for minimum 100,000 mechanical cycles

Technical Specifications

• Certification: PN-EN 1303:2015-07 1 6 0 0 0 B 5 C


• Fire Door Evaluation: ITB-compliant


• Material: Brass body


• Finish: Satin nickel


• Anti-drill Pins: 2 nickel-plated hardened steel in the body


• Key Security: Class 5 (12 pins, 9,300,000 key codes)


• Mechanical Durability: min. 100,000 cycles


• Temperature Resistance: -20°C to +80°C (Class B)


• Attack Resistance: Class C (3/5 min drilling, mechanical attack)


• Burglary Resistance: Class B (KT/402/IMP/2014)


• Included Keys: 5 drilled, silver-nickel keys


• Included Accessories: Mounting screw

Applications

Used in residential apartment doors, office access control, commercial premises entrance doors, and fire-resistant door assemblies. Suitable for security upgrades, large-scale facility management, and projects requiring key control with anti-bumping and anti-drilling protection. Well-suited for bulk installation in new builds or refurbishment of hotels, offices, multi-family buildings, and institutional facilities.

Packaging & Shipping

Supplied in aesthetic retail box with 5 keys manufactured from silver nickel, mounting screw, and product manual. Bulk packaging options available for OEM procurement.
