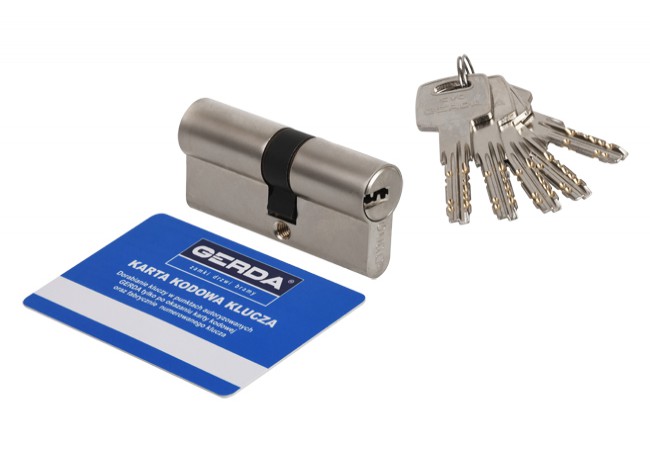

Gerda EVO 35/50 Euro Cylinder Lock Satin Nickel Security Class 5 PN-EN 1303

Product Overview

The Gerda EVO 35/50 Satin Nickel Cylinder is an anti-burglary euro profile lock cylinder engineered for use in secure residential and commercial doors, particularly where fire safety certification is required. Certified to PN-EN 1303:2015-07, it achieves resistance class B and mechanical durability for a minimum of 100,000 operating cycles, making it suitable for frequent use in demanding environments including fire-rated and high-traffic entryways.

What distinguishes this specific cylinder is its advanced key security, achieved by a complex system of 12 pins across two rows and 3 lateral pins, providing 9,300,000 possible key code combinations and meeting security class 5. This greatly mitigates procurement risk associated with unauthorized key duplication and manipulation, supporting facilities management priorities in multi-tenant buildings or critical infrastructure. Highly recommended for B2B buyers overseeing access control in public, commercial, or fire-protected facilities.

Key Features

• Security class 5 ? 12 tumbler pins (9 main, 3 side) for 9,300,000 possible key code combinations


• Certified anti-bumping and anti-picking design ? innovative key profile resists common break-in methods


• Drill protection ? two hardened, nickel-plated steel anti-drill pins in the cylinder body


• Corrosion resistance ? suitable for installations exposed to varying humidity or weather


• Temperature resistance class B ? operates reliably between -20°C and +80°C


• Durability ? minimum 100,000 cycles mechanical lifespan validated by certification


• Compliant with PN-EN 1303:2015-07, attack resistance class C, and fire door installation requirements ?

Technical Specifications

• Cylinder Type: Euro profile


• Body Material: Brass


• Finish: Satin nickel


• Pin System: 12 pins (9 standard in two rows, 3 side pins)


• Possible Key Codes: 9,300,000


• Operating Temperature: -20°C to +80°C


• Resistance Class: B (burglary), C (attack), per certification


• Cycle Durability: ?100,000 cycles


• Certification: PN-EN 1303:2015-07


• Included Keys: 5 nickel silver dimple keys


• Additional Features: Hardened anti-drill pins

Applications

Designed for residential, public, and commercial buildings requiring advanced access control. Especially suited for fire-rated doors, main entrances, and facilities with high security requirements such as multi-tenant blocks, offices, public institutions, and areas where anti-burglar and fire safety standards must be met. Supports installation in certified fire doors and in projects requiring standard-compliant locking solutions.

Packaging & Shipping

Supplied in an aesthetic box containing the cylinder, 5 nickel silver dimple keys, installation screw, and product documentation. Bulk and blister packaging versions available for large-scale or OEM procurement.
