Gerda EVO 40g/30 Cylinder Lock Satin Nickel 12-Pin Class 5 Fire-Rated PN-EN 1303

Product Overview

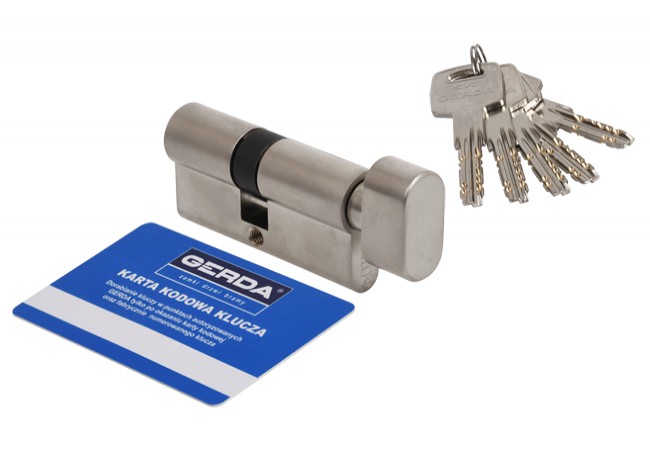

Gerda EVO 40g/30 cylinder lock with satin nickel finish is a certified anti-burglary barrel lock system tailored for commercial and residential door installations, including fire-rated carpentry applications. Meeting PN-EN 1303:2015-07 standards, it withstands temperatures from -20°C to +80°C, features robust anti-drill nickel-plated steel pins, and offers mechanical durability above 100,000 cycles.

Distinctive for its innovative key design with 12 pins distributed in two rows and side positions, this model achieves key security class 5, enabling over 9,300,000 unique key code combinations. This feature helps eliminate risk of unauthorized duplication or lock manipulation, making the lock highly suitable for property managers, facility security upgrades, and bulk procurement in fire-safe building projects where certified lock security is essential.

Key Features

• Certified to PN-EN 1303:2015-07 ? compliance for professional security and fire-rated installations


• Innovative 12-pin key system ? 9 in two rows, 3 lateral; 9,300,000 key code combinations for enhanced security


• Anti-bumping and anti-drill ? nickel-plated hardened steel pins resist forced entry methods


• Mechanical lifespan ? tested for minimum 100,000 operating cycles


• Temperature class B ? reliable function between -20°C and +80°C


• Corrosion-resistant brass body ? ideal for outdoor or humidity-prone installations


• Set includes 5 silver-plated drilled keys ? wear-resistant for frequent use

Technical Specifications

• Standard: PN-EN 1303:2015-07 1 6 0 0 0 B 5 C


• Key Security Class: 5 (12 pins, 9,300,000 combinations)


• Attack Resistance Class: C (3?5 min drilling resistance, mechanical attack resistance)


• Burglary Resistance: B (medium) per KT/402/IMP/2014


• Material: Brass body, nickel-plated finish


• Temperature Resistance: -20°C to +80°C (class B)


• Corrosion Resistance: Yes


• Cylinder Size: 40g/30 mm


• Mechanical Durability: >100,000 cycles


• Color: Satin nickel


• Included Keys: 5 (drilled, silver-plated)


• Mounting Screw: Included

Applications

Used in residential, office, hospitality, and commercial buildings requiring high security and fire-rated doors. Suited for main entrance, internal doors, and facility management upgrades. Certified for stolarce przeciwpożarowej (fire-rated carpentry), making it applicable in fire-safe construction, property management, and where key-control and certified durability are mandatory.

Packaging & Shipping

Supplied in an aesthetic box with cylinder lock, 5 drilled keys, mounting screw, and installation instructions. Bulk and OEM packaging options available upon request.
