Gerda H Plus RIM top cylinder insert, satin nickel, 4 keys

WK-WA-508

Price:
10.35 € net
12.73 €
23%
szt
Basket
%  Ask about wholesale price
Availability:
Large quantity
Pack entrie
Unit: szt
Shipment time*:
tomorrow
Order now
Product catalog
Drawing, description
Certificate
Product card
MASTER KEY SYSTEM
Product safety information

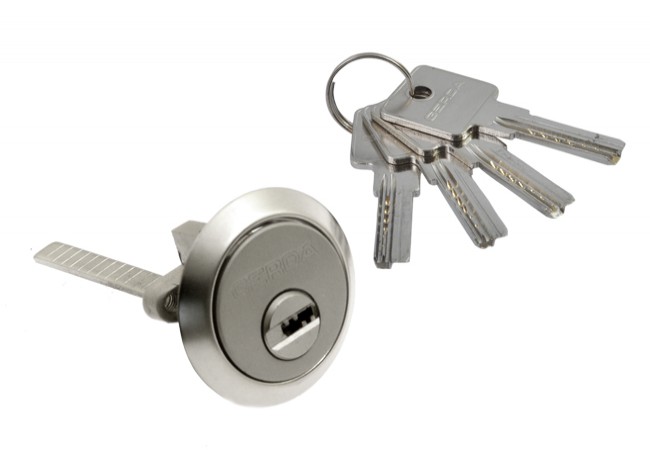

Gerda H Plus RIM top cylinder insert, satin nickel, 4 keys

Gerda
RIM H PLUS Surface Mount Lock Cylinder

Designed for use with GERDA ZN 100/ZN 200, GERDA ZG 100/ZG 200, and GERDA ZX 1000 surface mount locks. Its universal size and adjustable key ... More

Detailed description
Connected products:
Producer: Gerda   Product code: 0WRHP000000.90040P
EAN-13:
5902203175651
5902203175651
Description - Gerda H Plus RIM top cylinder insert, satin nickel, 4 keys

RIM H PLUS Surface Mount Lock Cylinder


Designed for use with GERDA ZN 100/ZN 200, GERDA ZG 100/ZG 200, and GERDA ZX 1000 surface mount locks. Its universal size and adjustable key length ensure compatibility with locks from other manufacturers. Ideal for a wide range of surface mount locks.



  • Gerda Security Class: 7

  • NATO Certified: Yes

  • IMP Certified: Yes

  • Cylinder Classification according to PN-EN 1303: 2007: 16000B30

  • Certified by the Institute of Precision Mechanics

  • Key Code Protection - Class 3

  • 6 Active Pins

  • Hardened, nickel-plated steel anti-drill pin in the cylinder body

  • Exceptional Durability - Over 100,000 Cycles

  • Brass Body Construction

  • High Corrosion Resistance

  • Includes: 4 Keys, Two Mounting Screws, and Elegant Packaging

  • Available Finishes: Brass, Satin Nickel


Custom options available upon request:



  • Cylinder compatibility with ZN, ZG series surface mount locks*

  • Keying-alike option available

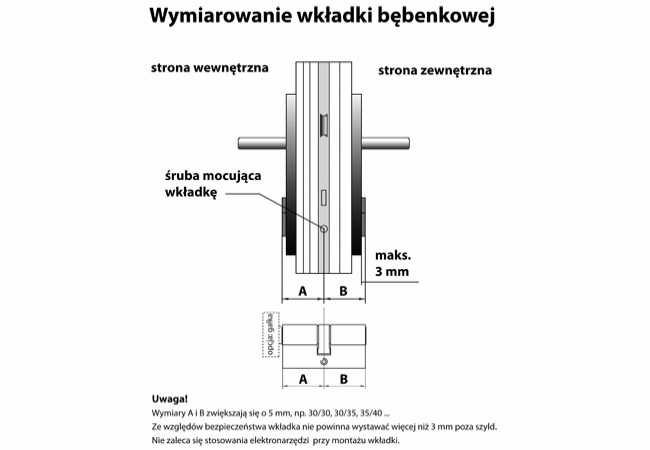

How to choose the right cylinder size?



Watch the video below.





  • A side dimmension:
  • B side dimmension:
  • A side knob: Without knob
  • EN 1303:2007 classification: 16000B30
  • Key type: horizontal, symmetrical
  • Number of keys: 4
  • Finish colour: Nickel
  • Suitable for fire doors: No
  • Brand: GERDA

    We offer fast delivery throughout the European Union and other countries. Our TAX ID is registered in the EU. We possess ISO 9001:2015 Certificate.



    We have over 30 years of experience in the fittings industry.


    We offer large wholesale discounts - ask for a price for your company now.


    We cordially invite you for cooperation.


    SPARTA ? Your reliable partner in security!
