Gerda RIM PRO SYSTEM top cylinder insert, brass, class 6 D, 5 keys

RIM PRO SYSTEM Surface Mount Lock Cylinder

Designed for use with GERDA ZN 100 / ZN 200, GERDA ZG 100 / ZG 200, and GERDA ZX 1000 surface mount locks. Its universal size and adjustable latch length ensure compatibility with locks from other manufacturers. Suitable for a wide range of surface mount locks.

• Gerda Security Class: 12


• NATO Certification: Yes


• IMP Certification: Yes


• Cylinder Classification according to PN-EN 1303: 2007: 16000B62/D


• Certified by the Institute of Precision Mechanics


• Highest Security Class - 6D according to PN-EN 1303:2007


• Exceptional Durability ? Over 100,000 cycles


• Over 2,700,000 possible key code combinations


• Brass Body


• Hardened, Nickel-Plated Steel Anti-Drill Pin in Cylinder Body


• Highest Resistance to Attack - D


• High Corrosion Resistance


• Anti-Bumping Protection


• 6 Active Detents


• Equipped with Double-Diameter Pins

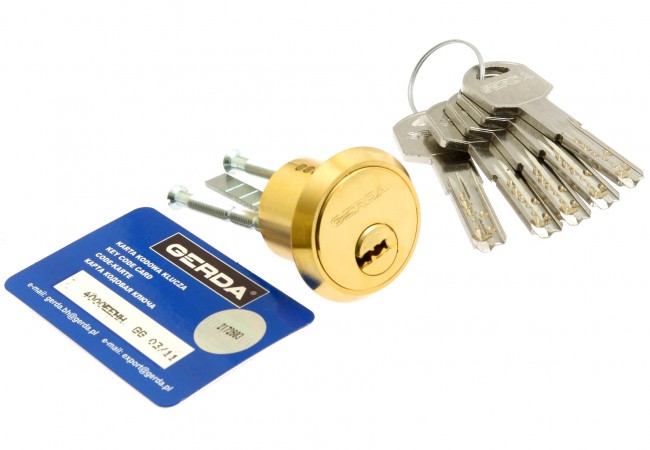

• Includes: 5 keys, key card, two mounting screws, and attractive packaging


• Available Finishes: Brass, Satin Nickel

Custom Options Available Upon Request:

• Master Key System Capability


• Compatibility with ZN, ZG, and ZX1000 series surface mount locks

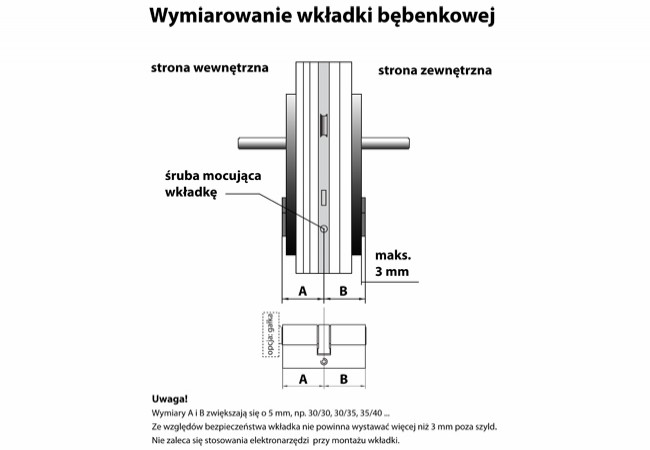

How to choose the right cylinder size?

Watch the video below.
