GERDA ZW100S Mortise Lock 72/50 Reversible Latch Silver Zinc PN-EN 12209:2005

Product Overview

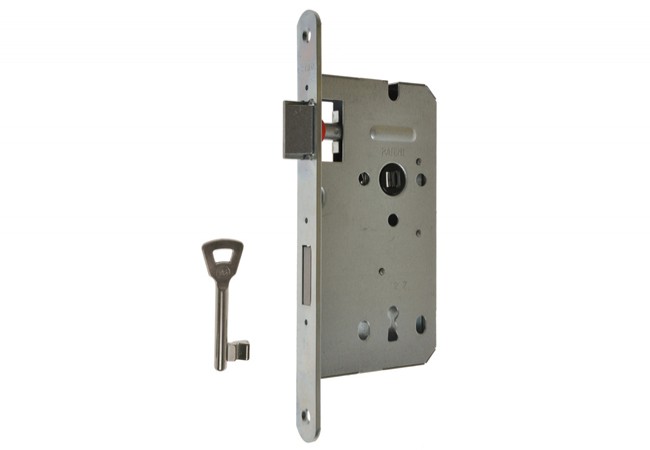

The GERDA ZW100S 72/50 KL mortise lock is an internal and external door locking mechanism, finished in silver zinc. Designed for public institutions, schools, housing associations, and commercial buildings, it meets the requirements for high resistance to inappropriate use of door hardware. Certified by the Institute of Precision Mechanics (IMP) and classified per PN-EN 12209:2005, it accommodates doors up to 100 kg and is manufactured for long-lasting, fault-free performance.

A notable feature of this variant is its reversible latch, which enables quick and tool-free conversion between right- and left-handed doors. This versatility reduces inventory complexity and installation errors for procurement departments and installers managing multiple door orientations. The ZW100S is particularly suited for large-scale joinery projects or bulk procurement by door manufacturers and service contractors.

Key Features

• Reversible latch ? quick, tool-free conversion for right- or left-hand door installation


• High durability ? rated for over 50,000 operation cycles for extended service life


• IMP certification ? independently tested for security and performance assurance


• PN-EN 12209:2005 classification ? compliant with European door lock standards


• Steel riveted case and faceplate ? increased structural strength for demanding environments


• Supports doors up to 100 kg ? suitable for robust internal and external door assemblies


• Multiple configurations ? available for cylinder, key, lever, or WC applications

Technical Specifications

• Lock Type: Mortise (universal)


• Center Distance: 72 mm


• Backset: 50 mm


• Finish: Silver zinc (ocynk srebrny)


• Maximum Door Weight: 100 kg


• Operating Cycles: >50,000


• Certification: IMP


• Standard: PN-EN 12209:2005


• Reversibility: Right- or left-hand configuration


• Case Material: Riveted steel


• Faceplate Material: Riveted steel


• Warranty: 12 months

Applications

Intended for use in commercial buildings, public institutions, schools, and residential communities where increased resistance to improper handling is necessary. Compatible with internal and external timber or steel doors up to 100 kg, including doors for bulk joinery production, replacements in high-traffic venues, and doors requiring compliance with European security standards.

Packaging & Shipping

Standard export packaging. Unit includes lock body, faceplate, mounting screws, and installation instructions. Joinery version excludes strike plate. Bulk packaging options available for OEM and large orders.
