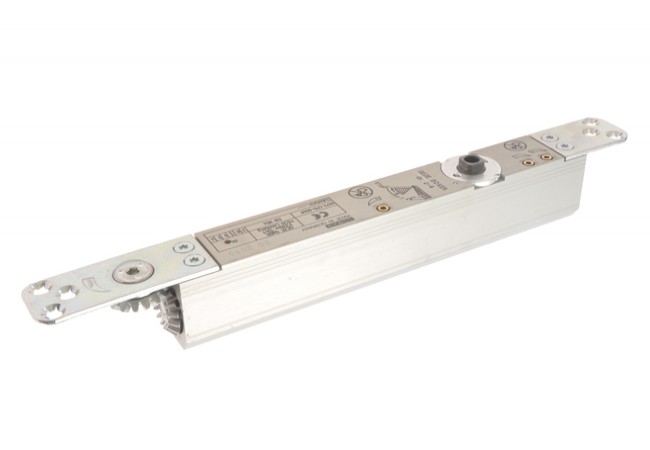

GEZE BOXER EN 2-4 2V Concealed Door Closer Latching Damping Valve EN 1154 130kg

Product Overview

The GEZE BOXER EN 2-4 2V concealed door closer with an additional latching action damping valve is designed for swing doors in both interior and exterior settings. It is suitable for wooden, aluminium, steel, and PVC doors with leaves up to 1100 mm wide and weighing up to 130 kg, and meets the EN 1154 standard for controlled closing. Installation is fully integrated into the door leaf (minimum thickness 40 mm), with the sliding rail mounted in the frame, supporting discreet architectural requirements.

A key differentiator of this variant is its additional valve for damping the final closing stroke, enabling fine-tuned, stepless adjustment of the latching phase directly from the top edge of the leaf. This feature minimizes the risk of noisy or damaging door slams, reducing maintenance calls in high-use environments. Particularly recommended for fire- and smoke-rated doors in commercial real estate or public sector projects where performance and adjustability are critical for compliance and lifecycle cost control.

Key Features

• Concealed installation ? fits completely inside the door leaf for a seamless appearance


• Adjustable closing force EN 2-4 ? suitable for doors up to 1100 mm wide and 130 kg


• Additional latching action damping valve ? stepless hydraulic control over final closing speed


• All adjustments accessible from the top edge ? simplifies post-installation fine-tuning


• Supports fire and smoke doors ? compliant with EN 1154 and certified for p.poż/dymoszczelne (fire/smoke) use


• Works with right and left-hand doors ? bidirectional operation, suitable for swing and double-action (wahadłowe) doors


• Compatible with minimum door leaf thickness 40 mm ? suitable for robust wooden, aluminium, steel, and PVC doors

Technical Specifications

• Mounting: Concealed in door leaf (sliding rail required in frame)


• Minimum Door Leaf Thickness: 40 mm


• Maximum Door Width: 1100 mm


• Maximum Door Weight: 130 kg


• Closing Force: EN 2-4 (adjustable)


• Standard: EN 1154


• Adjustment: Stepless, including hydraulic control for latching and opening damping


• Applicable Door Types: Wooden, Aluminium, Steel, PVC


• Valve: Additional latching action damping valve


• Directional Use: Both right and left, and double-action doors

Applications

Used in high-traffic commercial buildings, public facilities, office complexes, and multi-family residential properties where discreet appearance, fire/smoke protection, and flexible adjustability are required. Compatible with fire-rated and smoke-control doors, as well as double-action swing doors with a minimum leaf thickness of 40 mm. Well-suited for architectural projects prioritizing concealed hardware and certified compliance.

Packaging & Shipping

Standard export packaging. Each unit includes the concealed closer body and accessory hardware. Sliding rail and additional accessories are supplied separately according to order specification.
