GEZE TS 500 NV Floor Spring Door Closer Concealed EN 1-4 90° Hold-Open 150kg

Product Overview

GEZE TS 500 NV is a concealed floor spring door closer designed for internal swing doors, compatible with both left- and right-handed installations. Mounted within the floor with a 42 mm installation height, it supports doors up to 1100 mm wide and 150 kg leaf weight, and meets EN 1-4 closing force compliance per PN EN 1154. Hermetically sealed zinc-coated body and safety valve provide robust performance in high-traffic commercial and institutional spaces.

The integrated 90° hold-open function distinguishes this SKU, allowing doors to remain securely open at a preset angle until manually released. This simplifies compliance with accessibility and operational requirements in environments where temporary passage or barrier-free access is needed, such as hotels, retail, and office buildings. Particularly recommended for bulk procurement in commercial construction or retrofit projects requiring hidden floor closers with selective hold-open capability.

Key Features

• Concealed installation ? fits flush within floor with 42 mm height for unobtrusive appearance


• Adjustable closing force EN 1-4 ? suitable for doors up to 1100 mm wide and 150 kg leaf weight


• Hold-open at 90° ? integrated blocking function for easy passage and accessibility compliance


• Safety overload valve ? prevents damage from excessive force or misuse


• Hermetically sealed zinc-coated body ? protects mechanism from debris and moisture ingress


• Adjustable closing speed ? enables precise tuning to site requirements


• Wide range of adjustment ? 10 mm length, 10 mm width, 6 mm height flexibility for alignment

Technical Specifications

• Closing Force: EN 1-4 (adjustable)


• Maximum Door Width: 1100 mm


• Maximum Door Weight: 150 kg


• Installation Height: 42 mm


• Maximum Opening Angle: 170°


• Hold-Open Angle: 90°


• Certification: PN EN 1154


• Adjustment Range: Length 10 mm, Width 10 mm, Height 6 mm


• Body Material: Zinc-coated steel


• Safety Valve: Integrated overload protection

Applications

Suitable for swing and double-action doors in commercial, office, hotel, and retail buildings. Used for internal doors with requirements for concealed installation, selective hold-open operation, and heavy door leafs up to 150 kg. Compatible with EN 1154 certified fire and smoke control doors. Recommended for barrier-free access zones, high-traffic passages, and retrofit projects demanding robust, adjustable floor closers.

Packaging & Shipping

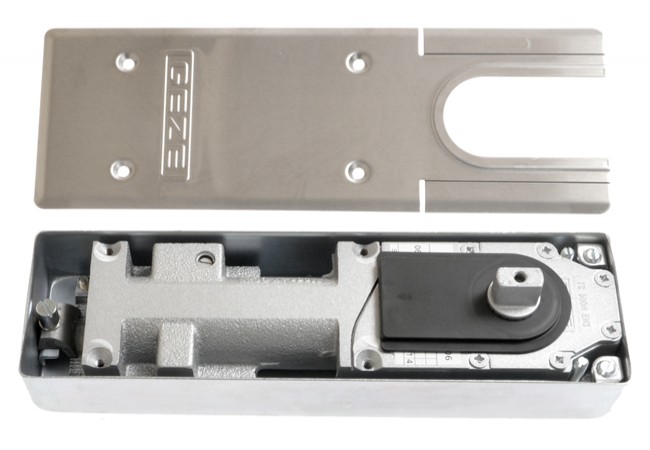

Standard export packaging. Unit includes concealed closer body, floor mounting box, cover plate, and installation hardware. Instruction manual and adjustment tool included for installer convenience.
