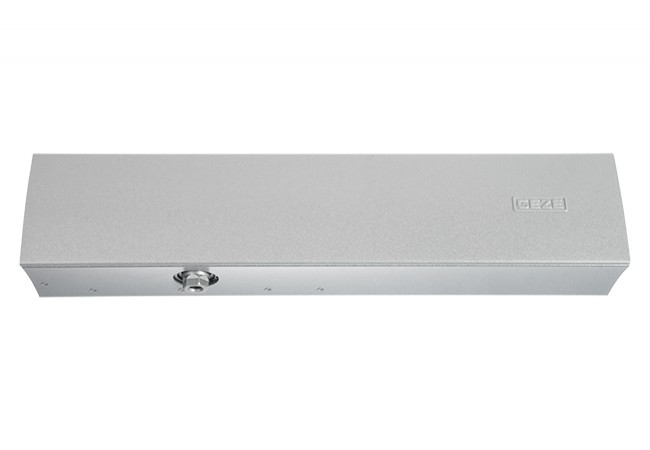

GEZE TS 5000 SoftClose Door Closer EN 1154 Silver SoftClose for 1400mm Doors

Product Overview

GEZE TS 5000 SoftClose is a hydraulic door closer tailored for noise-sensitive environments and heavy doors up to 1400 mm width. Widely selected for commercial, residential, and institutional spaces, it is certified to EN 1154:1996/A1:2002/AC:2006, suitable for both fire-rated and smoke-control doors, and supports mounting on hinge-side (door leaf) or non-hinge-side (frame) installations. The device features a compact 287 x 47 x 60 mm body and is adjustable from the front for quick in-situ calibration.

Its SoftClose technology stands out by providing controlled, silent closing action achieved through hydraulic dampening, which is directly adjustable on the unit. This eliminates disturbances in offices, hotels, and hospitals and reduces installation risk where precise closing speed and force are required. Particularly recommended for facility managers and contractors seeking compliance and low-noise operation in high-traffic projects, or for bulk installation across mixed door portfolios.

Key Features

• SoftClose hydraulic dampening ? minimizes noise during closing for offices, hotels, and medical settings


• Front-facing adjustment ? allows closing force, speed, latching, and back-check tuning without disassembly


• Optical force indicator ? ensures correct setting per EN 1154 for compliance and safety


• Thermostabilizing valves ? maintain consistent performance across temperature fluctuations


• Integrated overload safety valve ? protects mechanism from excessive force during operation


• Fire- and smoke-door ready ? certified for deployment on fire-rated and smoke-control doors


• Universal mounting ? compatible with right/left doors, hinge-side or frame-side application

Technical Specifications

• Maximum Door Width: 1400 mm


• Mounting Type: Hinge-side (door leaf) or non-hinge-side (frame)


• Maximum Opening Angle: 180°


• Body Dimensions: 287 mm x 47 mm x 60 mm


• Closing Force: Adjustable, front-access


• Closing Speed Adjustment: Yes, via front valve


• Final Latching Speed Adjustment: Yes, via valve


• Back-check Opening Dampening: Hydraulic, adjustable


• Optical Force Indicator: Yes


• Thermostabilizing Valves: Yes


• Overload Safety Valve: Yes


• Certification: EN 1154:1996/A1:2002/AC:2006


• Fire Door Compatibility: Yes


• Smoke Door Compatibility: Yes


• Color: Silver

Applications

Designed for fire-rated and smoke-control doors in commercial buildings, offices, hotels, hospitals, schools, and multi-family residences. Suitable for right or left-hinged doors up to 1400 mm wide. Supports bulk installation and facility upgrades where certified, quiet door closing is required. Ideal for architects/specifiers who need flexible mounting options and compliance with EN 1154.

Packaging & Shipping

Standard export packaging. Individual unit includes door closer body, mounting plate, installation accessories, and printed manual. Sliding rail and additional accessories available separately for customization.
