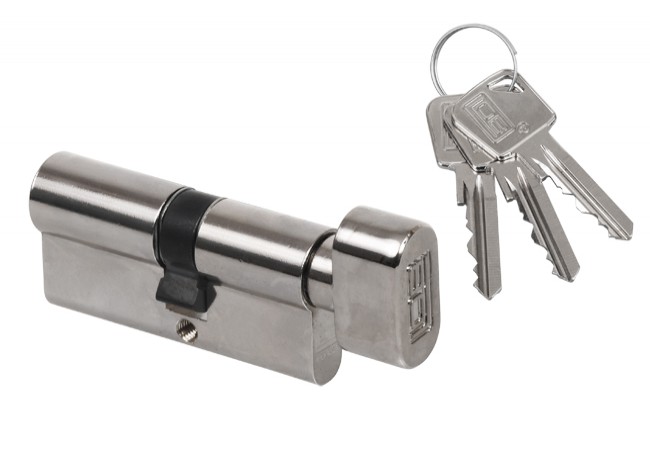

LOB ARES WG54 50g/55 Cylinder Lock with Knob Nickel EN 1303 Fire Rated Class C

Product Overview

The LOB ARES WG54 cylinder lock with knob is intended for use with mortise locks, primarily in commercial and residential doors requiring enhanced security and durability. Certified to PN EN 1303:2015-07, this model achieves class 6 for durability (over 100,000 cycles), class C for corrosion and temperature resistance, and class 4 for key security (over 30,000 unique key combinations). It is also approved for installation in fire-rated door assemblies.

Distinctive to the WG54 50g/55 variant is its highest corrosion and temperature resistance classification, allowing operation from -20°C to +80°C. This removes the risk associated with installations in harsh environments such as exterior doors, unheated warehouses, or high-traffic public facilities. Specification managers in fire safety projects and bulk procurement for commercial buildings will find this cylinder particularly suited for applications requiring resilience and regulatory compliance.

Key Features

• Fire-rated approval ? certified for use in fire safety door assemblies


• Durability class 6 ? exceeds 100,000 operational cycles for long service life


• Corrosion resistance class C ? suitable for wet, outdoor, and extreme environments (-20°C to +80°C)


• Key security class 4 ? minimum 30,000 key combinations reduces unauthorized access risk


• Nickel finish ? provides additional surface protection and aesthetic appeal


• Includes knob functionality ? allows keyless operation from one side


• PN EN 1303:2015-07 certified ? meets European technical and security standards

Technical Specifications

• Length: 50g/55 mm


• Finish: Nickel


• Standard: PN EN 1303:2015-07


• Durability Class: 6 (100,000 cycles minimum)


• Key Security Class: 4 (30,000 combinations minimum)


• Corrosion Resistance Class: C


• Operating Temperature: -20°C to +80°C


• Fire-rated Approval: Yes


• Keys Included: 3 cut keys


• Mounting: Compatible with mortise locks

Applications

Used in commercial, residential, and institutional doors where enhanced security and durability are required. Suitable for fire-rated assemblies, exterior doors, public facilities, warehouses, and locations exposed to extreme temperatures or humidity. Supports installations demanding PN EN 1303 compliance and regulatory certification.

Packaging & Shipping

Each unit is supplied in an aesthetic retail box including the cylinder lock body, knob, three cut keys, mounting screw, and installation instructions. Ready for bulk shipment and OEM procurement.
