LOB HEKTOR Cylinder Set Nickel Satin EN 1303:2007 Class 4 Unified Key System

Product Overview

The LOB HEKTOR Cylinder Set with satin nickel finish is a high-security solution comprising a knob cylinder and a double-sided cylinder, both operable with the same key. It is classified under PN: EN 1303:2007, tested by the Institute of Precision Mechanics in Warsaw, and achieves top ratings for durability and key security. Designed for use in commercial, residential, and institutional settings requiring advanced anti-burglary protection, this set operates reliably from -20°C to +80°C and is approved for installation in fire protection assemblies.

A distinguishing feature of this set is its comprehensive anti-drill and anti-vibration protection combined with high key security (class 4, minimum 30,000 combinations), which addresses risks related to unauthorized access and tampering. The unified key system simplifies access management for multi-door buildings. This SKU is particularly suited for facility managers, security contractors, or bulk procurement for new construction or renovation projects prioritizing certified, robust access control hardware.

Key Features

• Anti-drill protection ? hardened inserts prevent drilling attacks as per EN 1303:2007 requirements


• High durability ? class 6 longevity, tested for at least 100,000 operating cycles


• Corrosion resistance ? class C withstands extreme conditions from -20°C to +80°C


• High key security ? class 4 spec, minimum 30,000 key combinations for anti-copy protection


• Unified access system ? single key operates both knob and double cylinders for streamlined facility key management


• Approved for fire assemblies ? certified for use in fire-rated door sets


• Mechanical security ? knob cylinder and double cylinder, both provide resistance to forced entry (class B KT/402/IMP/2009)

Technical Specifications

• Cylinder Size: 40g/35 + 40/35 mm


• Key Type: 5-cut notched key


• Number of Keys: 6


• Corrosion Resistance: Class C (-20°C to +80°C)


• Durability: Class 6 (?100,000 cycles)


• Key Security: Class 4 (?30,000 combinations)


• Torque Resistance: 15 Nm


• Certification: PN: EN 1303:2007


• Fire Assembly Approval: Yes


• Finish: Nickel satin


• Classification: 16010C42 B


• Security Standard: Class B KT/402/IMP/2009

Applications

Used in commercial, residential, and institutional buildings where certified cylinder locks are required. Suitable for doors in fire-rated assemblies, access-controlled zones, or areas that demand high resistance to forced entry and environmental extremes. Ideal for multi-door facilities requiring unified keying systems and bulk security hardware procurement.

Packaging & Shipping

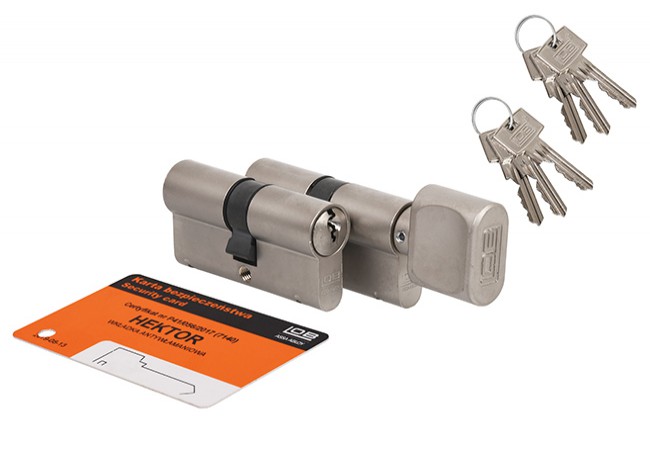

Esthetic, sealed packaging includes a double-sided cylinder, knob cylinder, six keys, mounting screw, and key card. Certificate of conformity from IMP is available in accompanying documents.
