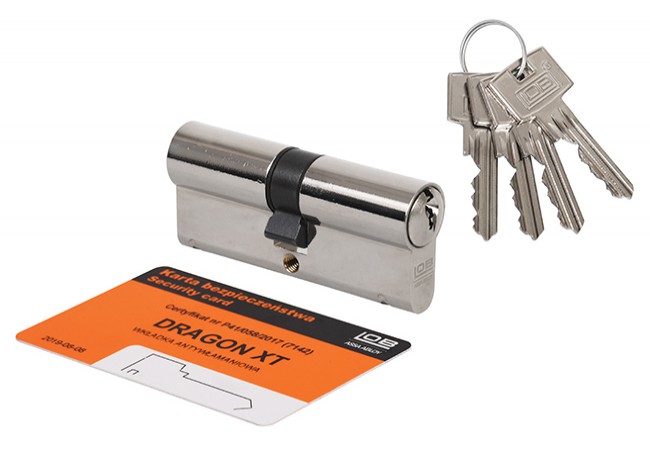

LOB WP600 DRAGON XT 45/45 Cylinder Lock Class 6 Key Security EN 1303 Nickel

Product Overview

The LOB WP600 DRAGON XT 45/45 cylinder lock is an anti-burglary profile cylinder designed for high-security applications in commercial and public buildings. Certified to PN: EN 1303:2015-07 by the Institute of Precision Mechanics in Warsaw, it achieves durability class 6 for at least 100,000 cycles and corrosion resistance class C for reliable operation between -20°C and +80°C. This model is approved for use in fire-rated door assemblies, offering strong mechanical resistance and security.

The standout feature of this cylinder is its highest key security classification (class 6), realized through six pin tumblers with 100,000 key combinations. This specification mitigates unauthorized duplication risks and meets rigorous access control requirements in multi-tenant complexes or sensitive facilities. Particularly suited for bulk procurement in facility management, access control upgrades, and OEM fire door projects.

Key Features

• Anti-drill protection ? reinforced pins prevent drilling attacks and enhance burglary resistance


• Vibration and tear resistance ? construction resists manipulation and forceful extraction


• Key security class 6 ? six pin tumblers, 100,000 combinations for restricted access environments


• Corrosion resistance class C ? tested for stable performance from -20°C to +80°C


• Durability class 6 ? certified for at least 100,000 operation cycles under EN 1303


• Torque resistance ? withstands up to 15 Nm mechanical force for secure installation


• Fire-rated approval ? eligible for use in certified fire door sets

Technical Specifications

• Length: 45/45 mm


• Key Security: Class 6 (six pin tumblers, 100,000 combinations)


• Durability: Class 6 (minimum 100,000 cycles)


• Corrosion Resistance: Class C (-20°C to +80°C)


• Torque Resistance: 15 Nm


• Attack Resistance: Class D (drilling 5/10 min, mechanical attack)


• Certification: PN: EN 1303:2015-07


• Fire Door Approval: Yes


• Finish: Nickel

Applications

Designed for high-security access points in office buildings, residential complexes, facility management, and OEM projects requiring EN 1303-certified hardware. Suitable for fire-rated door assemblies, emergency exits, and entrances in environments demanding advanced burglary and key protection. Widely used in controlled access scenarios, upgrade projects, and new construction sectors.

Packaging & Shipping

Each unit is packaged in a sealed box, including four dimple keys, a fixing screw, a code card, and installation instructions. Tamper-proof packaging prevents unauthorized access and ensures full functionality upon delivery.
