LOB WP600 DRAGON XT Cylinder Lock 35/35mm Nickel EN 1303 Class D Attack Resistant

Product Overview

The LOB WP600 DRAGON XT 35/35 nickel cylinder lock is an anti-burglary euro profile cylinder tested by the Institute of Precision Mechanics in Warsaw and certified to PN: EN 1303:2015-07. It is suited for high-security commercial and residential door assemblies, including fire-rated door sets, with class 6 durability (minimum 100,000 cycles) and high resistance to corrosion (class C) from -20°C to +80°C.

A key differentiator of this model is its class D attack resistance?the highest category?providing at least 5/10 minutes resistance against drilling and mechanical attacks. This feature significantly reduces the risk of forced entry in security-sensitive installations and aligns with rigorous procurement requirements for institutional and retail security upgrades. Particularly suited for bulk installation in high-value commercial spaces, facility management, and OEM fire door assemblies.

Key Features

• Class D attack resistance ? withstands at least 5/10 minutes drilling and mechanical attack per EN 1303


• Anti-drill protection ? hardened pins prevent cylinder deformation and penetration


• Anti-bump and anti-pull features ? vibration and extraction protection for increased security


• Key security class 6 ? six pin tumblers and up to 100,000 key combinations for controlled access


• Durability tested ? class 6 (minimum 100,000 cycles), suitable for high-traffic applications


• Corrosion resistance class C ? maintains function under extreme temperatures from -20°C to +80°C


• Fire door approved ? certified for use in fire-rated assemblies

Technical Specifications

• Cylinder Length: 35/35 mm


• Finish: Nickel


• Durability Classification: Class 6 (?100,000 cycles)


• Corrosion Resistance: Class C (-20°C to +80°C)


• Attack Resistance: Class D (drilling and mechanical attack: 5/10 min)


• Key Security: Class 6 (six pins, 100,000 combinations)


• Torque Resistance: 15 Nm


• Standard: PN: EN 1303:2015-07


• Certification: Fire door approved

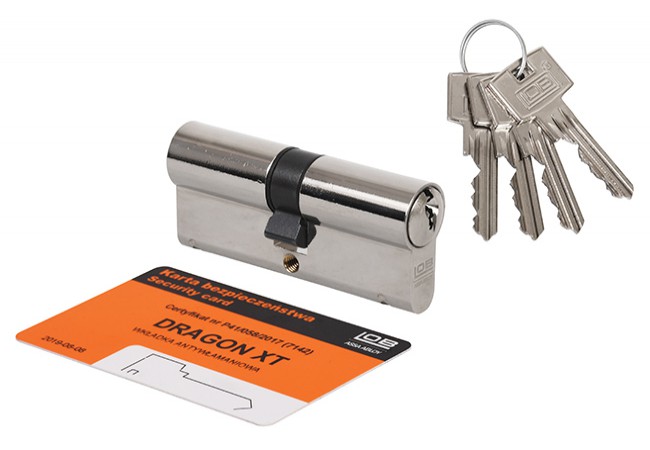

• Keys Included: 4 grooved keys


• Other Included: Fixing screw, code card

Applications

Used in high-security commercial properties, retail stores, institutional facilities, and premium residential buildings. Suitable for fire-rated doors, security doors, and entrances where advanced burglary protection is required. Compatible with large-scale facility management procurements and OEM fire door manufacturers seeking certified and durable locking hardware.

Packaging & Shipping

Each unit shipped in a sealed, tamper-evident box with four keys, fixing screw, code card, and installation manual. Export packaging available for bulk orders; all units include certification documentation.
