LOB WP600 DRAGON XT Euro Cylinder 35/40 Nickel Class D Attack Resistance EN 1303

Product Overview

The LOB WP600 DRAGON XT 35/40 nickel is a high-security Euro-profile cylinder developed for anti-burglary applications in commercial and residential buildings. Certified to PN:EN 1303:2015-07 and tested by the Institute of Precision Mechanics in Warsaw, it features classification 1 6 0 B 0 C 6 D, ensuring durability, corrosion resistance, and mechanical attack protection even in temperature extremes from -20°C to +80°C.

Its most distinctive feature is the class D attack resistance, granting the cylinder a tested resilience against drilling and mechanical intrusion for up to 10 minutes. This eliminates security risks for property managers in multi-tenant or high-value facilities, and satisfies rigorous fire-assembly approvals. It is well-suited for bulk procurement in new-build apartment complexes, schools, and business premises requiring the highest tested hardware security level.

Key Features

• Anti-drill pins ? hardened pins in cylinder provide resistance against drilling attacks


• Class 6 durability ? certified for at least 100,000 opening cycles per EN 1303:2015-07


• Class C corrosion resistance ? performs reliably from -20°C to +80°C


• Class 6 key security ? six-pin mechanism with 100,000 key combinations


• Attack resistance class D ? withstands mechanical attacks (5-10 min per certification)


• Approved for fire door assemblies ? compliant with fire-protection hardware requirements


• Anti-pull and anti-vibration protection ? specialized safeguards limit forced entry methods

Technical Specifications

• Size: 35/40 mm


• Finish: Nickel


• Standard: PN: EN 1303:2015-07


• Classification: 1 6 0 B 0 C 6 D


• Durability: 100,000 cycles (class 6)


• Corrosion resistance: Class C (temperature -20°C to +80°C)


• Key Security: Class 6 (six pins, 100,000 combinations)


• Attack resistance: Class D (drilling and mechanical attack, 5-10 min)


• Torque resistance: 15 Nm


• Tested by: Institute of Precision Mechanics, Warsaw


• Approved use: Fire-assembly hardware

Applications

This cylinder is designed for use in commercial buildings, apartment complexes, schools, and business premises that demand high-security locking hardware. It is suitable for doors specified in fire-protection assemblies and provides robust protection in main entryways, offices, storerooms, and secured zones. Commonly installed in access control systems and in environments where anti-burglary certification is required by project specifications.

Packaging & Shipping

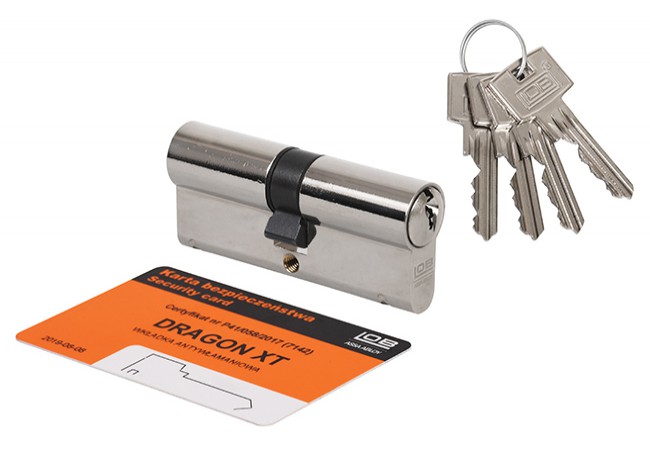

Cylinder supplied in factory-sealed, tamper-proof packaging, including four precision cut keys, fixing screw, and key code card. Aesthetic unit box ensures product integrity. Bulk palletization available for commercial orders.
