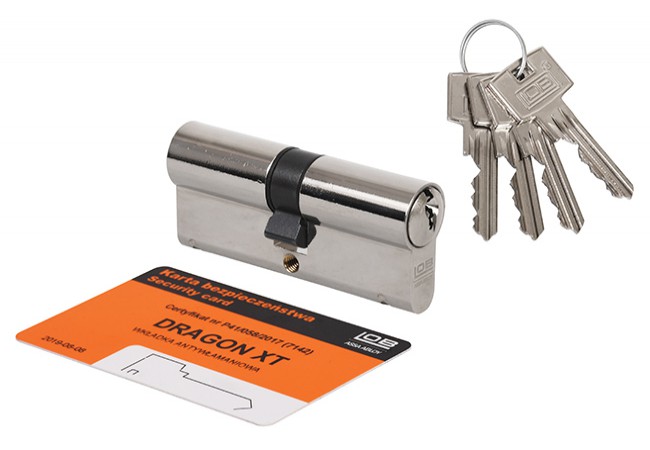

LOB WP600 DRAGON XT Euro Cylinder 40/50mm Class D Attack Resistance Nickel EN 1303

Product Overview

The LOB WP600 DRAGON XT 40/50 nickel euro-profile cylinder is engineered for high-security door installations in commercial and residential environments where maximum resistance against burglary is required. Certified to PN: EN 1303:2015-07, it meets class 6 for durability withstood for at least 100,000 operating cycles, and class C for exceptional corrosion resistance, even in temperature extremes from -20°C to +80°C. The cylinder is approved for use in fire-rated door assemblies.

What sets this model apart is its class D attack resistance?the highest rating?offering 5 to 10 minutes resistance to drilling and mechanical assault. This mitigates procurement risk in projects requiring compliance with rigorous national security standards and ensures sustained protection for high-value sites. Recommended primarily for safety-focused installations such as public sector, banking, and property management bulk procurement.

Key Features

• Anti-drill protection ? hardened pins thwart drilling attempts


• Class 6 security ? 6 pin tumblers and up to 100,000 key combinations


• Vibration and pull-out resistance ? engineered for hostile entry prevention


• Tested to PN: EN 1303:2015-07 ? meets recognized European security benchmarks


• Torque resistance 15 Nm ? resists forced turning and lock snapping


• Corrosion class C ? fully operable from -20°C to +80°C for outdoor or harsh environments


• Approved for fire door assemblies ? can be integrated in certified fire-rated doors

Technical Specifications

• Profile: Euro cylinder


• Dimensions: 40/50 mm


• Material: Nickel


• Security Classification: 1 6 0 B 0 C 6 D


• Durability: 100,000 cycles (class 6)


• Corrosion Resistance: Class C (-20°C to +80°C)


• Key Security: Class 6 (6 tumblers, 100,000 combinations)


• Attack Resistance: Class D (5?10 min drilling/mechanical assault)


• Torque Resistance: 15 Nm


• Certification: PN: EN 1303:2015-07


• Approved Use: Fire-rated doors


• Included keys: 4 cut keys


• Included accessories: fixing screw, code card

Applications

Commonly specified for entry and fire doors in commercial buildings, banks, apartment complexes, and public institutions requiring certified high-security hardware. Compatible with fire-rated door sets, security entrances, and installations in environments subject to temperature variance and corrosion exposure. Suitable for bulk procurement in high-security projects and OEM integration.

Packaging & Shipping

Each cylinder is individually sealed in aesthetic export packaging with 4 cut keys, fixing screw, and code card. Tamper-proof boxes preserve factory status and functionality, ensuring compliance with security protocols during shipping.
