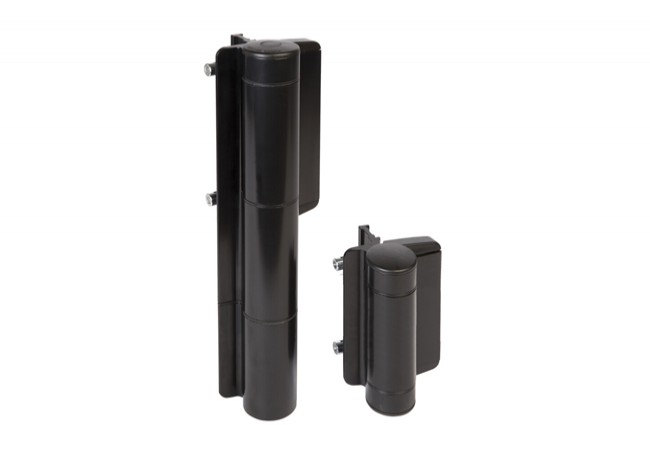

Locinox Mammoth-HD Hydraulic Gate Closer with Raptor Hinge Black Quick Fix 200kg 2000mm

Product Overview

Locinox Mammoth-HD Hydraulic Gate Closer with integrated Raptor hinge is designed for demanding users in outdoor gate and fence installations. Supporting swing gates up to 2000 mm wide and 200 kg in weight, it delivers consistent closure performance in all weather conditions thanks to its powder-coated aluminum housing and robust mechanism. Cycle-tested to 500,000 operations and operational within a temperature range from -30°C to +70°C, the Mammoth-HD is suited for professional installation in commercial, industrial, and high-traffic residential environments.

Quick Fix mounting screws distinguish this SKU, minimizing installation time and reducing onsite labor costs for installers managing large access control projects. The combined closer-hinge assembly simplifies procurement by providing both reliable closing action and structural stability, making it highly suitable for bulk supply to OEM fencing manufacturers and security contractors.

Key Features

• Integrated hydraulic closer and hinge ? combines Mammoth-HD closer with Raptor lower hinge for increased stability


• Quick Fix mounting ? accelerates installation, reducing labor costs


• Adjustable closing speed and force ? tunable to site-specific requirements


• Maximum gate width 2000 mm ? accommodates large residential and commercial gates


• Maximum gate weight 200 kg ? supports heavy-duty applications


• Powder-coated aluminum housing ? enhanced resistance to corrosion and mechanical damage


• Operational range -30°C to +70°C ? proven in extreme weather conditions

Technical Specifications

• Maximum Gate Width: 2000 mm


• Maximum Gate Weight: 200 kg


• Maximum Opening Angle: 180°


• Cycle Test: 500,000 operations


• Opening Resistance: 32 Nm


• Housing Material: Aluminum, powder-coated


• Mounting System: Quick Fix screws


• Temperature Range: -30°C to +70°C


• Color Options: Black (RAL-9005), Silver (ZILV)


• Warranty: 3 years

Applications

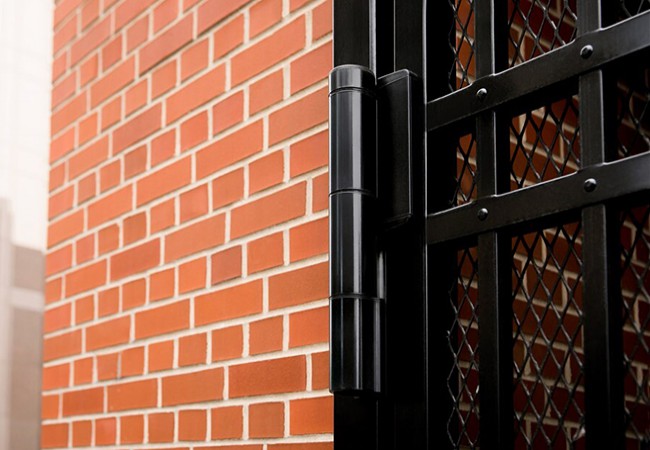

Used for swing gates and fence doors in industrial, commercial, and residential environments, including perimeter access, schools, business parks, and high-traffic gated communities. Suitable for environments requiring weather resistance and durability, such as outdoor installations subject to water, frost, and varying climates. Applicable to OEM gate systems, security fencing, and bulk installations for property management.

Packaging & Shipping

Standard export packaging. Each unit includes the Mammoth-HD closer, integrated Raptor hinge, Quick Fix mounting hardware, and installation instructions.
