Łucznik CP Plus 40/40 Cylinder Lock Insert Nickel Class C/D Anti-Drill 6 Pins

Product Overview

The Łucznik CP Plus 40/40 cylinder lock insert is engineered for high-security door installations in commercial, institutional, and public sector environments, including offices, banks, schools, and hospitals. Certified to class C burglary resistance and class D attack resistance, it meets demanding requirements for fire-rated and anti-burglary doors and carries the Mechanical Precision Institute Compliance Certificate. Manufactured from brass with a nickel satin finish, the insert supports complex master key and single key systems for integrated facility management.

This model stands out for its advanced anti-drill and anti-snap protection, minimizing procurement and security risks in large projects where unauthorized entry and methodical attacks are concerns. The presence of six security pins and protected key codes further enhances both resistance to tampering and key duplication control. It is particularly suited for bulk procurement in new construction or retrofit projects requiring certified hardware for multi-tenant or high-traffic public buildings.

Key Features

• Class C burglary resistance ? certified for use in security-critical doors


• Class D attack resistance ? protects against advanced forced entry methods


• Anti-drill and anti-snap design ? reinforced cylinder resists destructive attacks


• 6 security pins ? complex mechanism increases picking difficulty


• Over 100,000 cycles durability ? ensures long-term reliability for high-traffic areas


• Key code protection level 6 ? provides advanced control against unauthorized duplication


• Suitable for Master Key systems ? facilitates access control in multi-door facilities

Technical Specifications

• Cylinder Length: 40/40 mm (available sizes 60-200 mm)


• Material: Brass


• Finish: Nickel satin (also available in brass)


• Key Count: 5 drilled keys


• Certification: 1 6 0 B 0 0 6 D


• Class: C (burglary resistance)


• Attack Resistance: D


• Security Pins: 6


• Anti-Drill Protection: Yes


• Anti-Snap Protection: Yes


• Cycle Durability: >100,000 cycles


• Compliance Certificate: Mechanical Precision Institute


• System Compatibility: Master Key / Single Key

Applications

Used in fire-rated and anti-burglary doors across office buildings, banks, schools, government institutions, hospitals, and other public utility spaces. Supports master key and single key systems for scalable facility management in multi-door and multi-tenant environments. Recommended for bulk installation in commercial construction and retrofits where certified security components are required.

Packaging & Shipping

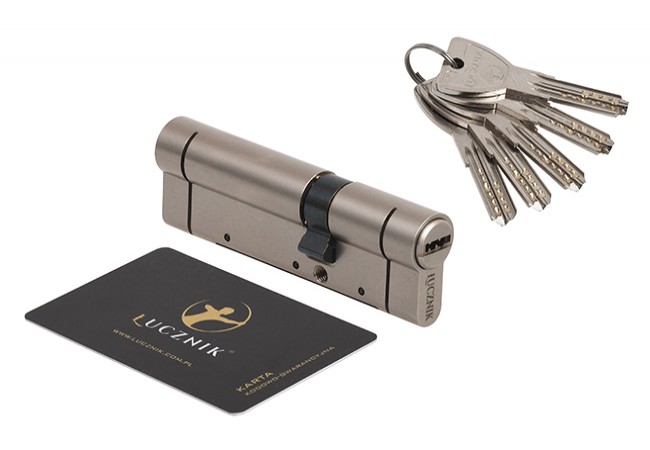

Individual units are packaged in sealed, tamper-evident boxes including 5 drilled keys and a code card, with mounting instructions. Bulk shipment options are available for large orders.
