Marvon Tecnoflame MA0TP212020S Intumescent Door Gasket 20x2mm Self-Adhesive DIN 4102 B2

Product Overview

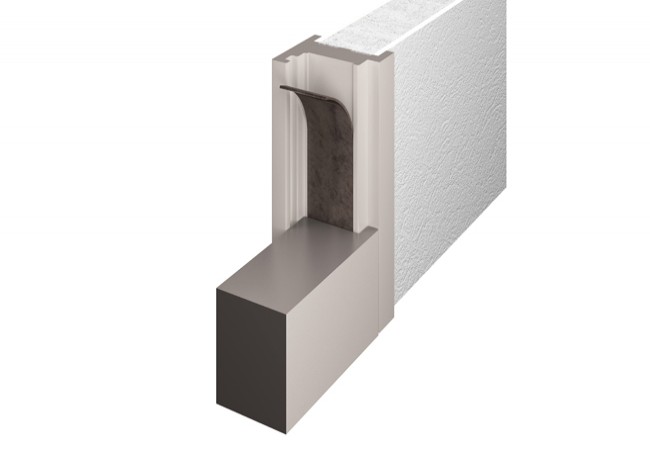

Marvon Tecnoflame 20x2 mm intumescent self-adhesive gasket is engineered for passive fire protection applications, expanding significantly under elevated temperature conditions. Suitable for installation in fire-rated frames made of metal, wood, or aluminum, as well as in fire shutters, suspended ceilings, industrial gates, lift doors, and partition walls, this product carries B2 fire classification according to German DIN 4102 and is certified by the German Institute for Building Technology.

Unlike standard foam tapes, Tecnoflame delivers a high expansion ratio of 1:10 and begins to activate at around 180°C, ensuring reliable sealing well before maximum fire temperatures are reached. This early activation eliminates the risk of smoke and flame leakage in the initial fire phase, a key procurement criterion for safety system integrators and industrial door manufacturers. Its self-adhesive backing facilitates rapid installation in large OEM and retrofit projects.

Key Features

• Intumescent core ? expands up to 10x its volume for reliable fire and smoke sealing


• Early activation ? begins expansion at 150?180°C for advanced fire protection response


• DIN 4102 B2 certified ? meets German fire safety flammability requirements


• High-pressure performance ? forms stable, semi-elastic foam at 5 bar, resisting fire-induced displacement


• Resistant to moisture and low temperatures ? suitable for demanding site conditions


• Solvent-free formulation ? contains no organic solvents for safer handling and specification


• Versatile dimension range ? available in thicknesses 1.5, 2, 3, 4, and 5 mm; widths from 9 to 58 mm

Technical Specifications

• Thickness: 2 mm


• Width: 20 mm


• Expansion Start Temperature: 150?180°C


• Expansion Ratio: 1:10


• Expansion Pressure: 5 bar / 0.12 S/mm2


• B2 Flammability Classification: DIN 4102


• Length per Roll: 100 m


• Composition: Resin, PVC, graphite, flame retardants


• Certification: German Institute for Building Technology


• Water Resistance: Yes


• Low Temperature Resistance: Yes


• Self-Adhesive: Yes

Applications

Used in fire-protection assemblies including door frames, fire shutters, suspended ceilings, industrial gates, elevator doors, and partition walls. Approved for both OEM and retrofit projects in commercial, industrial, and public buildings. Suitable for use in environments requiring DIN 4102 B2 fire safety compliance, with installation on metal, wood, or aluminum structures.

Packaging & Shipping

Supplied in standard export packaging on 100 m rolls. Each roll is boxed and includes the adhesive-backed gasket, installation instructions, and product certification copies. Custom roll lengths are available upon request for bulk or OEM orders.
