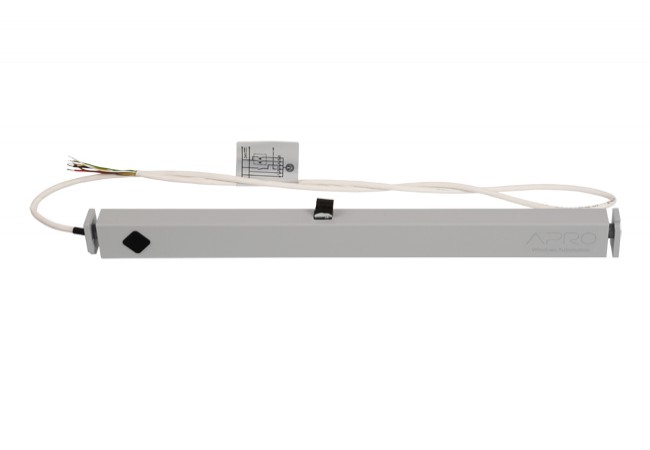

Master Apro 1123-ARGEN.3 Chain Window Actuator 24V DC 350N Wireless Control Silver

Product Overview

The Master Apro 24V DC chain window actuator is used for automated window opening and closing, typically integrated into smart building control systems in residential, commercial, and industrial environments. It operates with a rated output force of 350 N and a chain extension of 500?600 mm, and is suitable for installation on aluminum, wooden, and PVC tilt or tilt-and-turn windows. Protection class IP32 ensures suitability for indoor areas with moderate exposure, and the actuator supports automation for ventilation and smoke extraction systems.

This specific SKU is distinguished by its ability to connect to wireless modules, supporting remote programming and control of up to eight actuators via a mobile app. This feature addresses the need for centralized, flexible management in modern buildings and simplifies integration with home or office automation systems. Facility managers and integrators sourcing for smart ventilation or smoke control installations will find this actuator particularly suited for projects demanding real-time monitoring and remote operation.

Key Features

• Output force 350 N ? provides reliable opening for large window sashes up to 1250x1250 mm or 1250x2700 mm with electronic lock integration


• Chain extension 500?600 mm ? covers deep window frames and ensures full ventilation or smoke extraction capability


• Wireless module integration ? remote control and programming of up to 8 actuators from a smartphone


• Compatible with smart ventilation and smoke-control systems ? can be triggered by weather or smoke sensors


• Fast opening in emergency mode ? doubles chain extension speed for rapid smoke extraction


• IP32 protection class ? suitable for indoor environments with moderate dust and moisture exposure

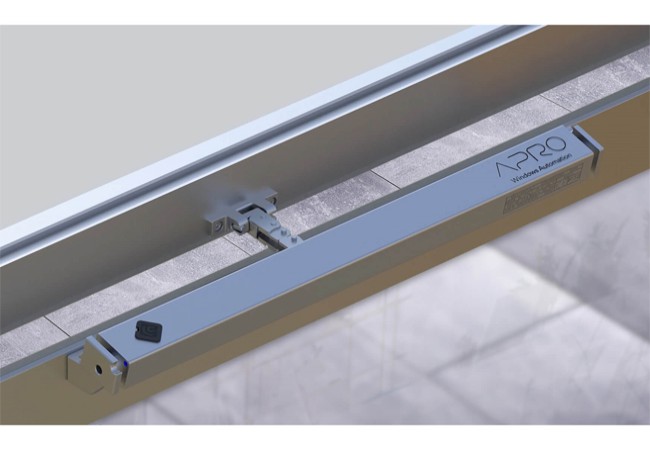

• Hidden installation ? actuator is concealed within the window sash for enhanced aesthetics

Technical Specifications

• Supply Voltage: 24V DC


• Output Force: 350 N


• Chain Extension: 500?600 mm


• Chain Speed: 6 mm/s


• Protection Class: IP32


• Operating Temperature: -5°C to +65°C


• Compatible Window Types: Tilt, tilt-and-turn (aluminum, wood, PVC)


• Wireless Control Module Capacity: Up to 8 actuators per module


• Mobile App Support: Yes

Applications

Installed in residential, commercial, and industrial buildings for automated tilt or tilt-and-turn windows. Applicable in smart home, office, and facility automation for controlled natural ventilation and smoke extraction. Suitable for fire safety, weather-responsive closure, and integration with sensors and access control systems. Particularly fit for OEM, renovation, or bulk installation projects where remote monitoring or centralized control is required.

Packaging & Shipping

Standard export packaging. Each unit includes actuator body, installation manual, and connection cables. Mounting brackets are sold separately. Bulk shipment options available for project orders.
