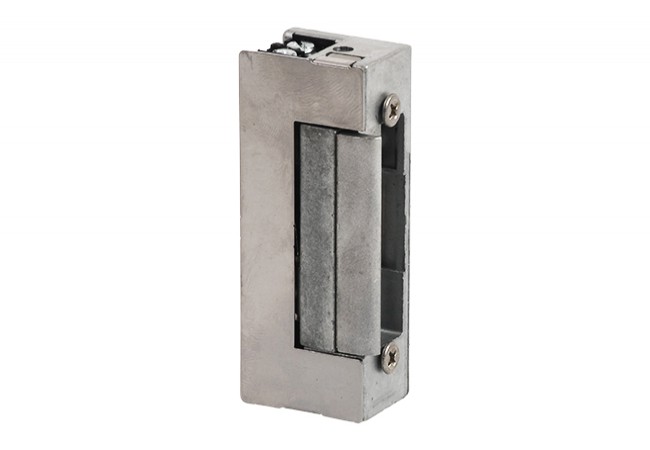

YALE YB17-12 NC Electric Strike Fail-Secure 8-16V AC/DC Mechanical Override Universal 20mm

Product Overview

YALE YB17-12 NC is a universal fail-secure electric strike suitable for left- or right-hand doors, designed for use in professional access control systems in office, commercial, and residential buildings. With a symmetrical housing allowing for both vertical and horizontal installation, it operates on a wide input voltage range of 8-16 V AC/DC and is compatible with standard mortise locks. The YB17-12 is not intended for fire-rated doors and works reliably in environments from -15°C to +40°C.

A key differentiator of this model is its integrated mechanical switch, which provides manual override to keep the strike unlocked during working hours or emergencies, eliminating the risk of locked access during power failure or system maintenance. This feature simplifies project planning for installers and facility managers seeking redundancy in access control points and is recommended for B2B buyers specifying hardware for multi-tenant or high-traffic buildings.

Key Features

• Symmetrical housing ? supports left- or right-hand door installation, both vertical and horizontal


• Mechanical override switch ? enables manual unlocking without electric power for emergency or scheduled open access


• Adjustable latch ? 3 mm range for flexible alignment with various mortise lock types


• Wide supply voltage ? operates reliably on 8?16 V AC/DC for compatibility with diverse building systems


• High holding force ? withstands up to 3500 N for secure, long-term use in commercial settings


• Universal installation ? compatible with a wide range of standard mortise locks and retrofits

Technical Specifications

• Mounting: Left or right, vertical or horizontal


• Power Supply: 8-16 V AC/DC


• Current Draw at 12 V AC: 470 mA


• Current Draw at 12 V DC: 550 mA


• Current Draw at 8 V AC: 310 mA


• Current Draw at 8 V DC: 360 mA


• Current Draw at 16 V AC: 620 mA


• Current Draw at 16 V DC: 730 mA


• Adjustable Latch Range: 3 mm


• Mechanical Strength: 3500 N


• Height: 75 mm


• Thickness: 20.5 mm


• Depth: 28 mm


• Operating Temperature: -15°C to +40°C


• Type: Fail-secure (NC, normally closed)

Applications

Used in access control systems for office buildings, commercial facilities, and apartment complexes where universal mounting and manual override are project requirements. Compatible with standard mortise locks; not suitable for fire-rated doors. Well-suited for installers and hardware integrators managing multi-tenant or retrofit projects requiring flexibility and high durability.

Packaging & Shipping

Standard export packaging. Unit includes the electric strike body, installation accessories, and instruction manual. Mounting plate not included.
