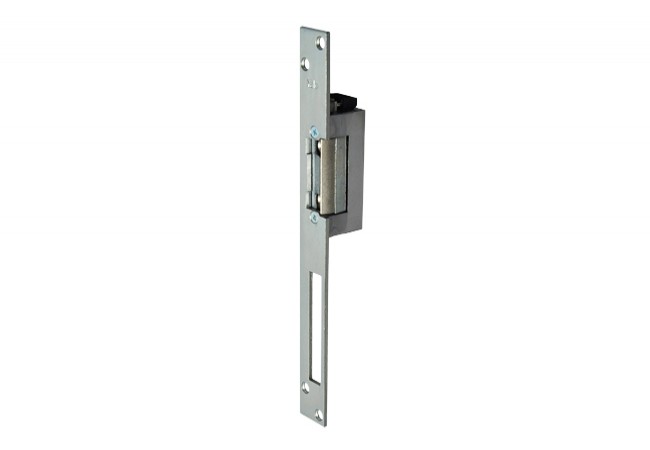

YALE YB18-12-M Electric Strike 10-24V AC/DC NC Mechanical Override Universal Mount

Product Overview

The YALE YB18-12-M electric strike is designed for access control systems in commercial, office, and residential installations where versatile mounting and emergency unlock are required. Offering a symmetrical structure for universal mounting?left or right doors, vertical or horizontal positions?the device operates on a wide 10-24 V AC/DC voltage range and features mechanical override for manual unlocking during power failure or emergencies.

The standout feature of this SKU is its integrated mechanical unlock mechanism, which allows manual door opening without electrical power. This eliminates procurement risk for projects that require compliance with partial-access control and ensures safety and usability during outages or system failures. It is recommended for facility managers and integrators seeking robust access control hardware for mixed-purpose environments with occasional manual override demands.

Key Features

• Symmetrical design ? supports vertical or horizontal mounting, suitable for left or right doors


• Mechanical override ? manual unlocking possible for emergency or power failure situations


• Wide voltage range ? operates from 10-24 V, compatible with AC and DC systems


• Adjustable latch ? 3 mm adjustability accommodates various door and lock types


• Universal application ? compatible with mortise lock installations


• Current consumption ? 250 mA/12 V AC, 280 mA/12 V DC, 500 mA/24 V AC, 560 mA/24 V DC


• Durability tested ? 250,000 cycles for long-term operation

Technical Specifications

• Mounting Direction: Universal (left/right, vertical/horizontal)


• Supply Voltage: 10-24 V AC/DC


• Latch Adjustment: 3 mm range


• Type of Operation: Fail-secure (NC)


• Mechanical Override: Yes


• Current Consumption (12 V AC): 250 mA


• Current Consumption (12 V DC): 280 mA


• Current Consumption (24 V AC): 500 mA


• Current Consumption (24 V DC): 560 mA


• Mechanical Strength: 3,750 N


• Height: 66 mm


• Thickness: 16 mm


• Depth: 25.5 mm


• Latch Engagement Depth: 5.5 mm


• Operating Temperature: -15°C to +40°C


• Tested Cycles: 250,000


• Max Preload (AC): 200 N


• Max Preload (DC): 50 N

Applications

Commonly used in office buildings, commercial premises, and residential complexes where flexible access control and manual override are essential. Suitable for installations requiring universal mounting and compatibility with mortise locks. Not intended for fire-rated doors. Recommended for mixed-use projects, retrofits, and facility upgrades demanding reliable access control with emergency function.

Packaging & Shipping

Standard export packaging. Each unit includes the electric strike body, installation accessories, and instructional manual; strike plate not included.
