Abus D10+KD10NP Cylinder Lock Set Keyed Alike Emergency Function EN 1303 Class 5 Nickel

Product Overview

The Abus D10+KD10NP cylinder set offers high-grade anti-burglary protection, featuring a double-sided cylinder and a knob cylinder, both operated by the same key. Designed for use with mortise locks, this set achieves PN-EN 1303:2007 certification and is suitable for residential and commercial entry doors requiring advanced security. Its construction includes corrosion-resistant materials and is rated for durability with a lifespan of at least 50,000 cycles.

Distinctive for its secure emergency function (safe clutch), the Abus D10+KD10NP allows operation even if a key is inserted on the opposite side, addressing a common access risk in multi-user premises. This feature reduces lockout incidents and is particularly valuable for hotels, rental apartments, and facilities needing guaranteed entry. The set is recommended for bulk procurement in security-focused buildings or projects with one-key convenience requirements.

Key Features

• Emergency function clutch ? operates despite key inserted on opposite side, reduces lockout risk


• Pre-snap protection ? anti-break system prevents cylinder snapping during forced entry attempts


• 10 tumbler pin system ? over 100,000 key combinations, enhanced key security class 5


• Drill protection ? hardened inserts resist destructive entry methods


• Corrosion resistance class C ? operates reliably from -20°C to +80°C, suitable for harsh environments


• Antipicking patented system ? specially engineered pins counteract manipulation attacks


• Durability ? tested to withstand at least 50,000 cycles, suited for high-traffic doors

Technical Specifications

• Cylinder Lengths: 35/50 mm and 35g/50 mm


• Material: Brass body, bronze and hardened steel pins, stainless steel springs


• Certification: PN-EN 1303:2007


• Key Security Class: 5


• Number of Tumblers: 10 (two rows)


• Attack Resistance: Class 2 (min. 5/10 min, 40 hits), Class C (KW/WQ-02)


• Corrosion Resistance: Class C


• Operating Temperature: -20°C to +80°C


• Function: Emergency/safe clutch


• Key Combination Capacity: 100,000+

Applications

Used in residential, hospitality, multi-unit, and commercial buildings requiring enhanced security for entrance doors. Compatible with mortise locks and suited for locations demanding a one-key system for multiple cylinders. Compliant with PN-EN 1303 standards, ideal for bulk installation in hotels, office complexes, rental properties, and facilities with frequent access changes.

Packaging & Shipping

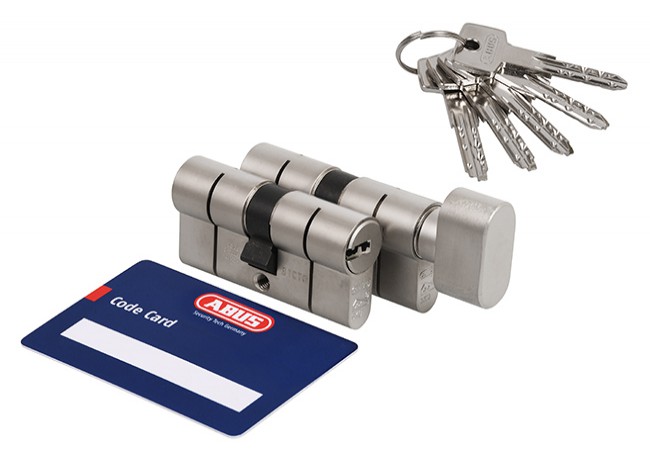

Each set is delivered in a factory-sealed box including double-sided cylinder, knob cylinder, 5 drilled keys, code card, mounting screw, and installation manual. Tamper-evident packaging ensures integrity and security, suitable for bulk shipments.
