Abus D10+KD10NP Cylinder Set Emergency Function Clutch EN 1303:2007 Class 5 Nickel Pearl

Product Overview

The Abus D10+KD10NP cylinder set offers advanced anti-burglary protection for mortise locks in commercial and residential buildings. Featuring a double-sided cylinder and a knob cylinder operated with the same key, it is certified to PN-EN 1303:2007, ensuring compliance with key mechanical security standards and durability of at least 50,000 cycles. This set delivers high resistance to forced entry, corrosion, and drilling attacks, making it suitable for demanding environments.

The emergency function clutch, which allows unlocking even if a key is inserted on the opposite side, distinguishes this SKU from standard cylinder sets. This feature addresses safety concerns in facilities where quick access is crucial, such as hotels, office complexes, and care institutions. It is particularly suited for bulk procurement in new construction or refurbishment projects demanding consistent safety and operational convenience.

Key Features

• Emergency function clutch ? enables unlocking from both sides even if a key is present, for increased safety


• 10-pin system ? offers up to 100,000 key combinations for enhanced key security (class 5)


• Pre-snap protection ? built-in defense against cylinder snapping during break-in attempts


• Drill and pick resistance ? patented anti-picking system and hardened steel pins ensure high attack resistance


• Corrosion resistance class C ? fully functional from -20°C to +80°C for outdoor and harsh environments


• Durability ? tested for a minimum of 50,000 opening/closing cycles, suitable for high-traffic installations


• Unified key system ? both cylinders operated by the same key for operational convenience and reduced key inventory

Technical Specifications

• Certification: PN-EN 1303:2007 1 5 0 0 0 C 5 2 C


• Key Security Class: 5 (10 pins, 100,000 combinations)


• Attack Resistance Class: 2 (minimum 5/10 minutes, 40 strikes), Class C


• Corrosion Resistance: Class C (-20°C to +80°C)


• Cycle Life: ? 50,000 openings


• Material: Brass (body), bronze and hardened steel (pins), stainless steel (springs)


• Included Keys: 5 drilled keys

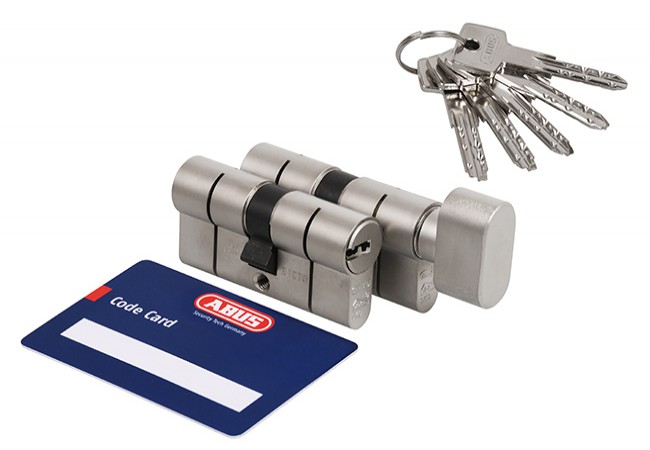

• Included: Double-sided cylinder, knob cylinder, 5 keys, code card, mounting screw


• Warranty: 5 years

Applications

Widely used in commercial premises, hotels, office buildings, residential complexes, and institutional facilities. Suitable for security doors, main entrance doors, and rooms requiring emergency access. Compatible with mortise locks and bulk installations where high pick and drill resistance, emergency function, and certified security standards are required.

Packaging & Shipping

Each set is packed in a sealed, tamper-evident box including the two cylinders, 5 drilled keys, code card, mounting screw, and user manual. Designed for secure shipping and protection of security components. Bulk carton packaging available for project procurement.
